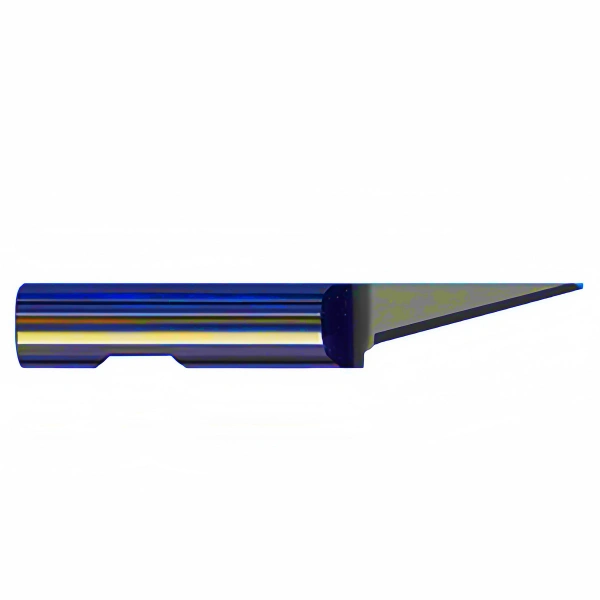

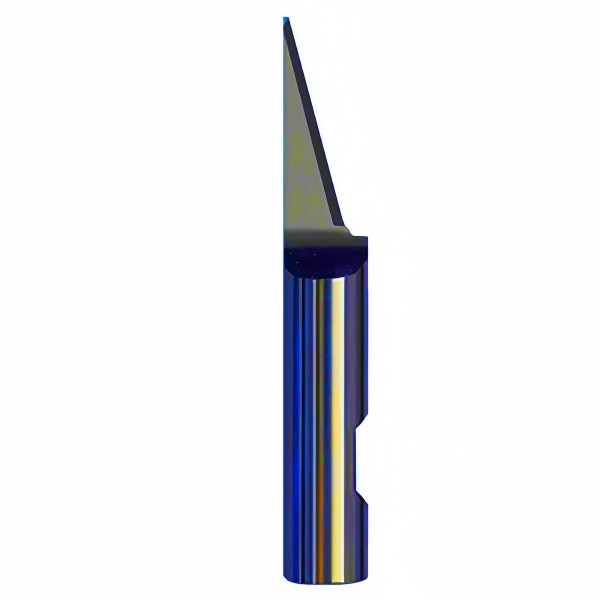

Esko-BLD-SR6316
Esko-BLD-SR6316blades

Esko Kongsberg BLD-SR6316 Knife Blades (G42459743)

Esko Kongsberg BLD-SR6315 Oscillation Knife Blade (G42449504)
Esko Kongsberg BLD-SR6317 Carbide Knife Blades G42460410

Esko Kongsberg BLD-SR6316 oscillating blade, 40mm blade height, 75° angle, 0.64mm thickness, maximum cutting depth 13.5mm. Suitable for canvas, carbon fiber, PVC and other materials, compatible with Esko automatic cutting machines.

Category:

Esko Kongsberg BLD-SR6316 Tungsten Carbide Knife Blades (G42459743)

Cutter brand
Esko Kongsberg

Knife height
40,00 mm

Angle
75°

Max. cutting depth
13,50 mm

Materials
Canvas, Canvas, Carbon fibers, Felt, Foam board, Foil, Folding Carton, Glass fibers, Honeycomb, Magnetic foil, Masking film, Nylon fabric, Paper, Poliethylene foam, Polyester fabric, Polyethylene, PVC, Reflective foil, Reflective vinyl film, Rubber, Self-adhesive foil, Self-adhesive vinyl film, Tarpaulin, Vinyls

Knife Type
Oscillating blade, Weldon

Replacement
Yes

Knife/blade mounting
round Ø 6 mm

Thickness
0,64 mm

Description

Similar to the SR6315 but even a thinner blade optimized for finer details. Blade thickness 0,35mm

Specifications

D Shank diameter 6mm
C Maximum cutting thickness 14mm – 9/16″


Requirements

To use BLD-SR6316 on your Kongsberg PCS table, you need one of the following configurations:

  • Reciprocating/MP HI Frequency knife tool for XL/XN/X/V with adapter 34053207
  • Long stroke knife tool for XL/XN/X/V
  • VibraCut/HI Frequence VibraCut knife tool for C / XP with adapter 34046425

Cutting Info

Material Sub Category Thickness Method
Corrugated plastic Corrugated plastic < 12mm High frequency oscillating
Corrugated plastic Corrugated plastic < 12mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) 10-20mm High-frequency oscillating
