Esko-BLD-SR6310-C2
Esko-BLD-SR6310-C2blades

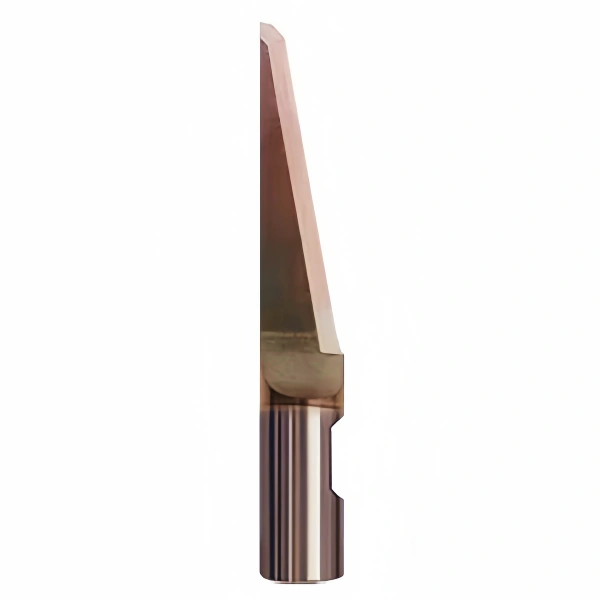

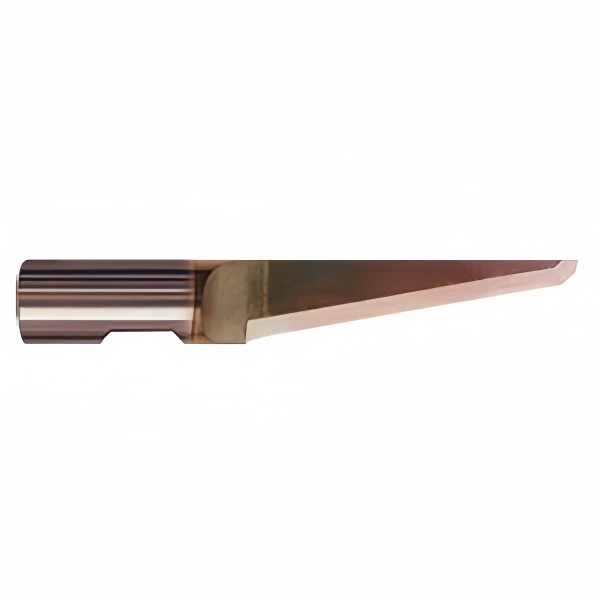

Esko Kongsberg BLD-SR6310 C2 Oscillation Knife Blades (G42475798)

Esko Kongsberg BLD-SR6310 Oscillation Knife Blades (G42441626)
Esko Kongsberg BLD-SR6311 Oscilating knife Blades G42443101

Esko Kongsberg BLD-SR6310 C2 tungsten steel vibrating blade, specially designed for thick cardboard materials. Tungsten steel coating reduces friction by 60%, extends life by 6 times, suitable for three-layer corrugated and Reboard, improves cutting efficiency, environmentally friendly and safe.

Category:

Esko BLD-SR6310 C2 Tungsten Steel Vibrating Blade (G42475798) | Low friction and high wear resistance | Suitable for thick corrugated cardboard

Dimensions

Length (cm) 4
Width (cm) 0.6
Height (cm) 0.6
Net weight (kg) 0.01

Description

Provides good results on thick and rigid paper-based materials, such as triple wall corrugated and Reboard, when used with the Multi-Purpose High-Frequency Knife Tool.

Specifications

The Tungsten carbide thin coating provides a super hard and smooth surface with 60% reduced friction. This means less lift and pull when milling, ensuring less power consumption. It increases therefore productivity for sign applications. The coating extends x6 the lifetime of the product, it’s biocompatible and harmless for the environment.

D Shank diameter 6mm
C Maximum cutting thickness 20mm – 3/4″


Requirements

To use BLD-SR6310 C2 on your Kongsberg PCS table, you need one of the following configurations:

  • Reciprocating/MP HI Frequency knife tool for XL/XN/X/V with adapter 34053207
  • Long stroke knife tool for XL/XN/X/V
  • VibraCut/HI Frequence VibraCut knife tool for C / XP with adapter 34046425

Cutting Info

Material Sub Category Thickness Method
Carpet materials w/ rubber backing Carpet materials w/ rubber backing < 10mm Oscillating
Corrugated Triple wall Triple recycle (7-16mm) High-frequency oscillating
Corrugated plastic Corrugated plastic < 16mm High-frequency oscillating
Expanded polystyrene Expanded polystyrene < 20mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) < 5mm High-frequency oscillating
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm High-frequency oscillating
Honeycomb / Fluted core board Honeycomb- fluted core board 16mm High-frequency oscillating
Protective foam Low density < 20mm Oscillating
