Esko-BLD-SR6224-C2
Esko-BLD-SR6224-C2blades

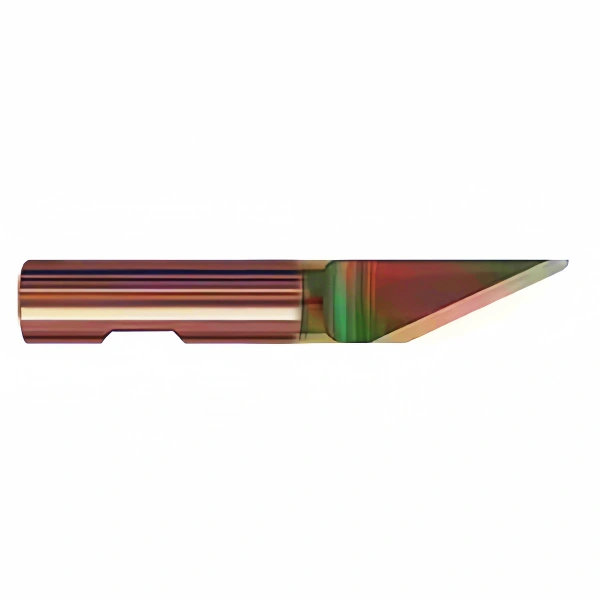

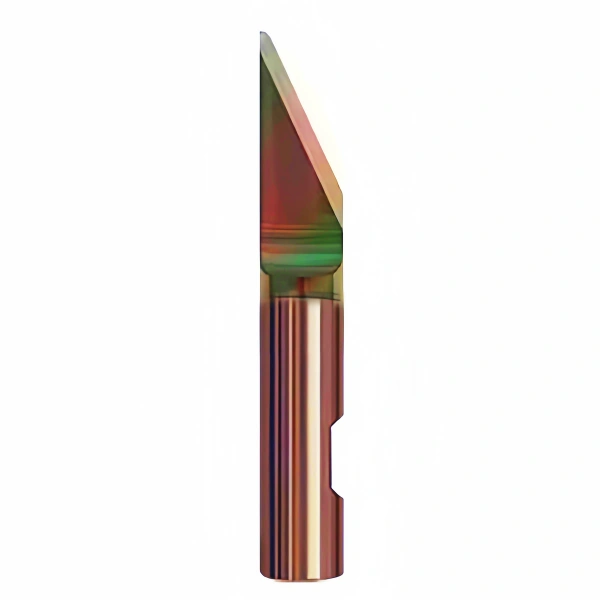

Esko Kongsberg BLD-SR6224 C2 Tungsten Carbide Oscillation Knife Blades (G42475780)

Esko Kongsberg BLD-SR6224 Oscillation Knife Blades (G42438135)
Esko Kongsberg BLD-SR6242 Oscillation Knife Blades (G42460964)

Esko BLD-SR6224 C2 oscillating blade, with tungsten steel coating, is suitable for corrugated cardboard with high recycled content. It reduces friction by 60%, extends service life by 6 times, is environmentally friendly and durable, and improves cutting efficiency.

Category:

Esko Kongsberg BLD-SR6224 C2 Tungsten Carbide Oscillation Knife Blades (G42475780)

Dimensions
Length (cm) 4
Width (cm) 0.6
Height (cm) 0.6
Net weight (kg) 0.01

Description

Long-life blade. The preferred choice for a corrugated board with high recycled content due to the reduced friction.

Specifications

The Tungsten carbide thin coating provides a super hard and smooth surface with 60% reduced friction. This means less lift and pull when milling, ensuring less power consumption. It increases therefore productivity for sign applications. The coating extends x6 the lifetime of the product, it’s biocompatible and harmless for the environment.

D Shank diameter 6mm
C Maximum cutting thickness 12mm – 1/2″


Requirements

To use BLD-SR6224 C2 on your Kongsberg PCS table, you need one of the following configurations:

  • Reciprocating/MP HI Frequency knife tool for XL/XN/X/V with adapter 34053207
  • Long stroke knife tool for XL/XN/X/V
  • VibraCut/HI Frequence VibraCut knife tool for XP / C / XE with adapter 34046425

Cutting Info

Material Sub Category Thickness Method
Carpet materials w/ rubber backing Carpet materials w/ rubber backing < 10mm Oscillating
Corrugated Single Wall F,E..(1-3mm) recycled High-frequency oscillating
Corrugated Single Wall F,E..(1-3mm) recycled Oscillating
Corrugated Double wall EB,BC…(5-7mm) recycled High-frequency oscillating
Corrugated Double wall EB,BC…(5-7mm) recycled Oscillating
Corrugated Triple wall Triple recycle (7-16mm) High-frequency oscillating
Corrugated plastic Corrugated plastic < 5mm High-frequency oscillating
Corrugated plastic Corrugated plastic < 5mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) < 5mm Oscillating
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Oscillating
Honeycomb / Fluted core board Honeycomb- fluted core board 5mm Oscillating
Solid board Display board 3mm High frequency oscillating
