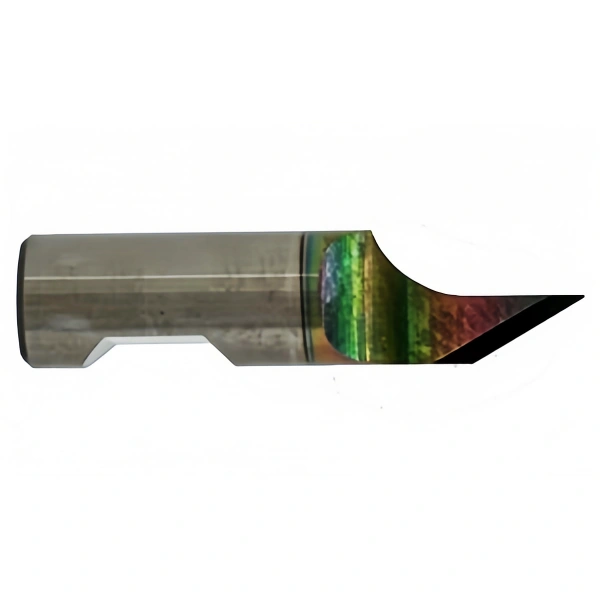

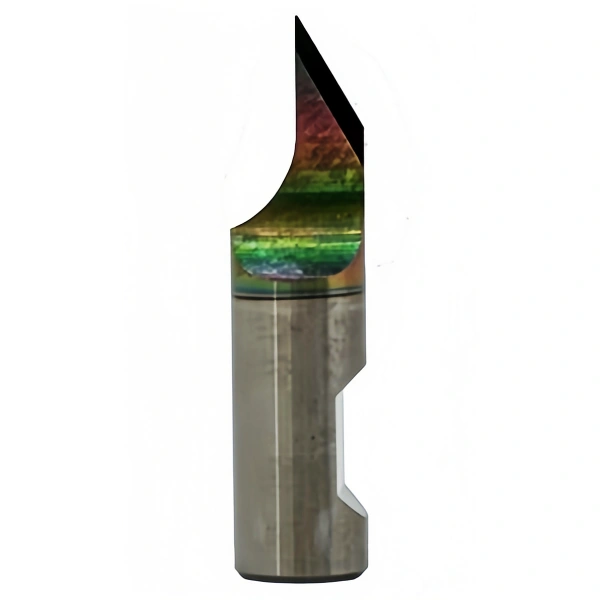

Esko Kongsberg BLD-SR6150 C2 coating Knife Blades (G42475764)

Esko Kongsberg BLD-SR6150 Knife Blade (G42445494)
Esko Kongsberg BLD-SR6151 Knife Blades (G42461251)

Esko Kongsberg BLD-SR6150 tungsten alloy C2 coated blade is specially designed for thin flexible materials such as folding cardboard, polyester film, leather, etc. It cuts accurately and efficiently, reduces friction by 60%, and extends life by 6 times. It is suitable for CNC cutting machines and digital cutting equipment.

Category:

Esko Kongsberg BLD-SR6150 C2 coating Knife Blades (G42475764)

Cutting Info

Length (cm) 2.5
Width (cm) 0.6
Height (cm) 0.6
Net weight (kg) 0.007

Description

Long-life Tungsten carbide blade for thinner flexible materials such as folding carton, polyester film, leather, vinyl, paper. 30* cutting angle.

Specifications

The Tungsten carbide thin coating provides a super hard and smooth surface with 60% reduced friction. This means less lift and pull when milling, ensuring less power consumption. It increases therefore productivity for sign applications. The coating extends x6 the lifetime of the product, it’s biocompatible and harmless for the environment.

D Shank diameter 6mm
C Maximum cutting thickness 5mm – 3/16″


Requirements

To use BLD-SR6150 C2 on your Kongsberg PCS table, you need one of the following configurations.

  • Hi-Force Knife tool on C/XP/XE with adapter 34068759
  • VariCut knife tool on XE with adapter 34061135
  • Static knife tool on XE with adapter 34061135
  • Psaligraphy knife tool on C/XP/XL/XN/X/V/XE adapter n/a

Cutting Info

Material Sub Category Thickness Method
Adhesive (decal) vinyl Adhesive (decal) vinyl Standard thickness Static fine detail
Flexible plastic sheet Flexible plastic sheet < 2mm Static
Foam board soft (PUR) Foam board soft (PUR) < 5mm Static
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Folding carton Folding carton Folding carton Static fine detail
Folding carton Folding carton Folding carton Static
Lenticular display panels Lenticular display panels < 5mm Static
Magnetic foil Magnetic foil Magnetic foil Static fine detail
Magnetic foil Magnetic foil Magnetic foil Static
Solid board Display board 3mm Static
Esko Kongsberg blades, tungsten alloy blades, C2 coated blades, folding cardboard cutting blades, polyester film blades, leather cutting blades, vinyl blades, CNC cutting blades, long life cutting blades, environmentally friendly cutting blades, automatic cutting machine blades, digital cutting machine blades
