Esko-BLD-SF645
Esko BLD-SF645-blades

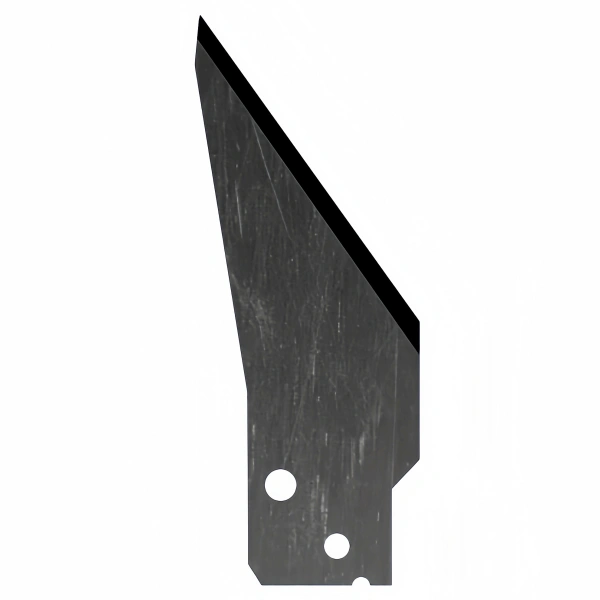

Esko Kongsberg BLD-SF645 Tungsten Carbide Knife Blades (G34137323)

Esko Kongsberg BLD-SF641 Knife Blades (G34127167)
Esko Kongsberg BLD-SR6150 Knife Blade (G42445494)

Esko Kongsberg BLD-SF645 tungsten alloy blade, suitable for VariAngle cutting machine, specially designed for corrugated core board and paper-based honeycomb materials, durable and efficient, cutting precision.

Category:

Esko Kongsberg BLD-SF645 Tungsten Carbide Knife Blades (G34137323)

Description

Long-life Tungsten carbide blade for use in the standard knife blade adapter for the VariAngle. Typically used for cutting fluted crore board (Re-board, X board etc) and paper-based honeycomb materials. 1,1 mm thick Tungsten carbide

Specifications

C Maximum cutting thickness 30 mm – 1 3/16″


The maximum cutting thickness for a straight cut (0 degrees) is 30 mm. Up to 45 degrees angle in material up to 20 mm thickness. Up to 60 degrees angle in material up to 16 mm thickness.

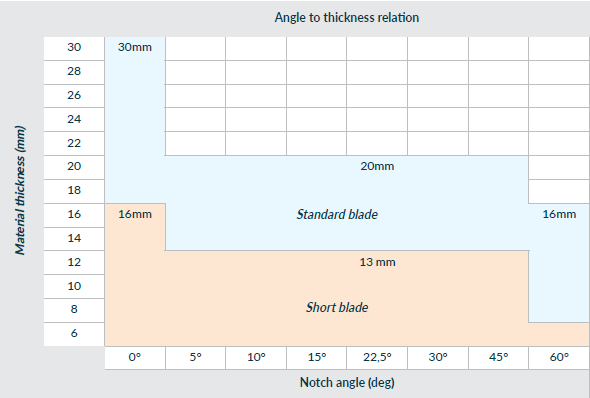

Image variangle knife.PNG

Requirements

To use BLD-SF645 on your Kongsberg PCS table, you need one of the following configurations.

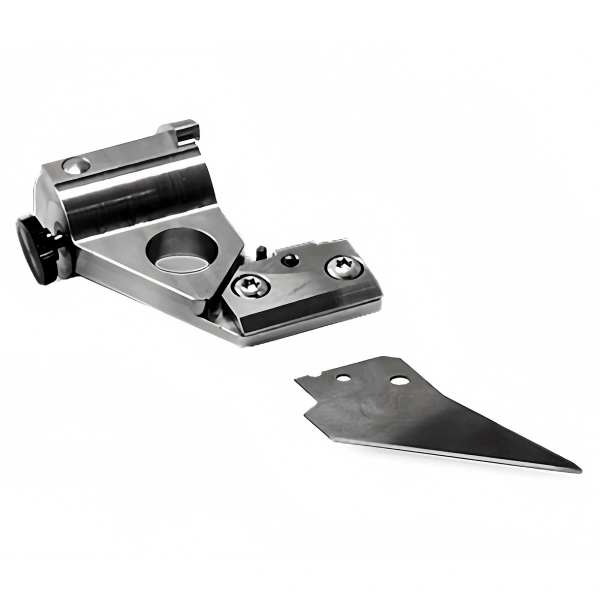

  • VariAngle Unit on C/XP with Standard Blade Adapter 34127381

Dimensions

Length (cm) 6.8
Width (cm) 7.2
Height (cm) 1.1
Net weight (kg) 0.03
Esko Kongsberg blade, BLD-SF645 blade, tungsten steel blade, VariAngle blade, corrugated core board cutting knife, paper-based honeycomb material blade, long life blade, packaging material blade.
