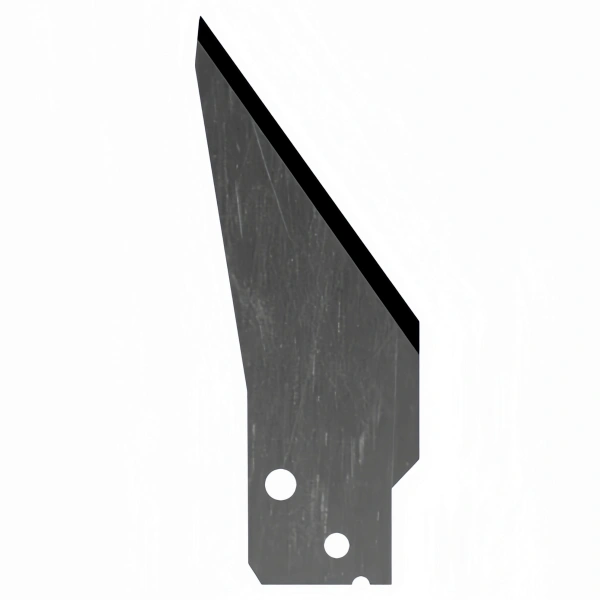

Esko BLD-SF641 tungsten steel blade, 0.9mm thick, suitable for cutting corrugated core cardboard and paper-based honeycomb materials, compatible with VariAngle standard knife holder, long life.
Long-life Tungsten carbide blade for use in the standard knife blade adapter for the VariAngle. Typically used for cutting fluted crore board (Re-board, X board etc) and paper-based honeycomb materials. 0.9 mm thick Tungsten carbide.
Specifications
C Maximum cutting thickness 30 mm – 1 3/16″

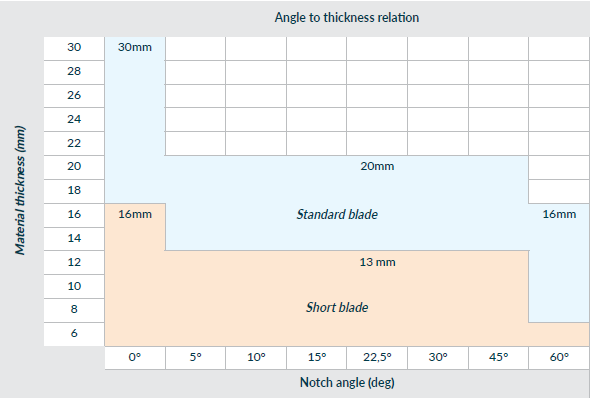

The maximum cutting thickness for a straight cut (0 degrees) is 30 mm. Up to 45 degrees angle in material up to 20 mm thickness. Up to 60 degrees angle in material up to 16 mm thickness.
Requirements
To use BLD-SF641 on your Kongsberg PCS table, you need one of the following configurations.

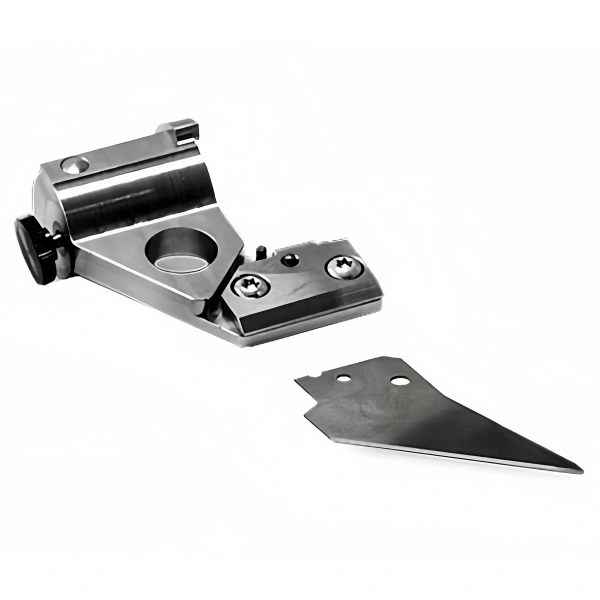

VariAngle Unit on C/XP with Standard Blade Adapter 34127381
This BLD-SF641 tungsten steel blade is designed for the standard blade adapter of Esko Kongsberg VariAngle CNC cutting machine. It is made of 0.9mm thick highly wear-resistant tungsten steel and has a very long service life. The blade is suitable for cutting corrugated core paperboard (such as Re-board, X-board) and paper-based honeycomb materials, and is widely used in display rack manufacturing, packaging design, advertising production and environmental protection material processing industries.
