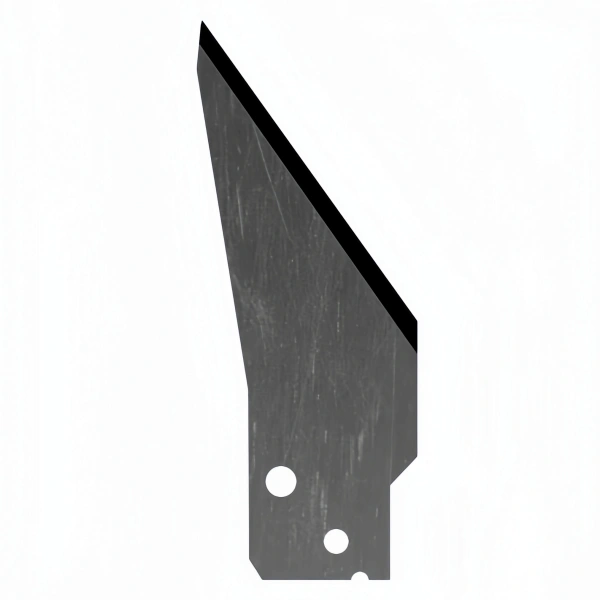

Esko Kongsberg BLD-SF640 Knife Blades (G34127159)

Esko Kongsberg BLD-SF620 Knife Blades (G34127142)
Esko Kongsberg BLD-SF641 Knife Blades (G34127167)

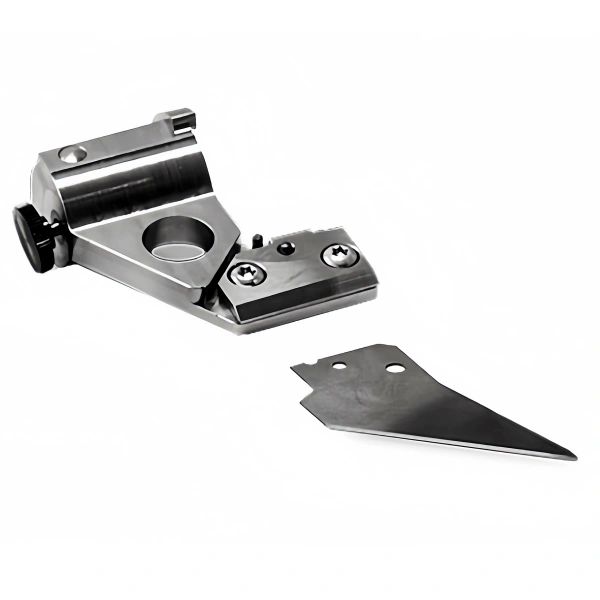

Long-life Tungsten carbide blade for use in the standard knife blade adapter for the VariAngle. Typically used for cutting fluted crore board (Re-board, X board etc) and paper-based honeycomb materials. 0.6 mm thick Tungsten carbide.

Category:

Esko Kongsberg BLD-SF640 Knife Blades (G34127159)

Description

Long-life Tungsten carbide blade for use in the standard knife blade adapter for the VariAngle. Typically used for cutting fluted crore board (Re-board, X board etc) and paper-based honeycomb materials. 0.6 mm thick Tungsten carbide.

Specifications

C Maximum cutting thickness 30 mm – 1 3/16″

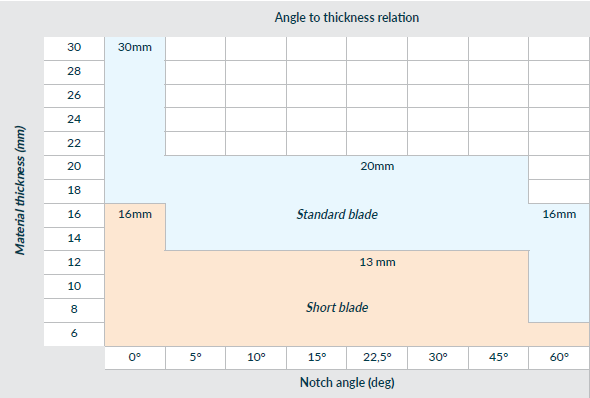

The maximum cutting thickness for a straight cut (0 degrees) is 30 mm. Up to 45 degrees angle in material up to 20 mm thickness. Up to 60 degrees angle in material up to 16 mm thickness.

Image variangle knife.PNG

Requirements

To use BLD-SF640 on your Kongsberg PCS table, you need one of the following configurations.

  • VariAngle Unit on C/XP with Standard Blade Adapter 34127381

Dimensions

Length (cm) 6.8
Width (cm) 7.2
Height (cm) 1.1
Net weight (kg) 0.03
