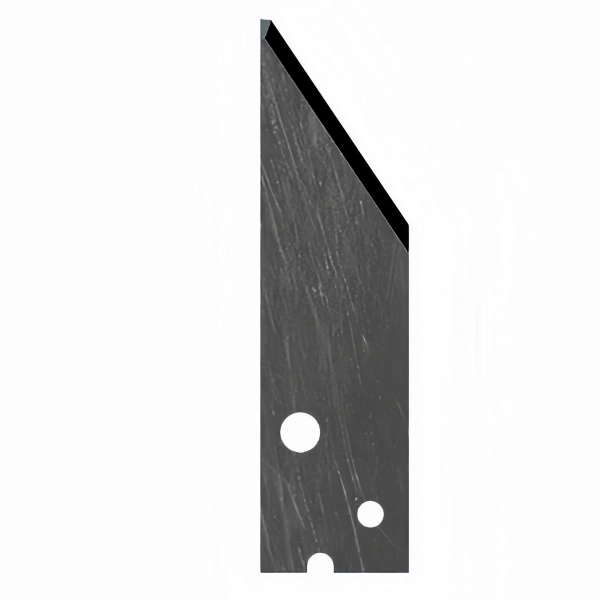

Esko Kongsberg BLD-SF620 Knife Blades (G34127142)

Esko Kongsberg BLD-SF511 Knife Blades (G34019497)
Esko Kongsberg BLD-SF640 Knife Blades (G34127159)

Long-life Tungsten carbide blade for use in the standard knife blade adapter for the VariAngle. Typically used for cutting fluted crore board (Re-board, X board etc) and paper-based honeycomb materials. 0.6 mm thick Tungsten carbide.

Category:

Esko Kongsberg BLD-SF620 Knife Blades (G34127142)

Description

Long-life Tungsten carbide blade for use in the standard knife blade adapter for the VariAngle. Typically used for cutting fluted crore board (Re-board, X board, etc) and paper-based honeycomb materials. 0.6 mm thick Tungsten carbide.

Specifications

L Total length 40 mm
C Maximum cutting thickness 16 mm – 5/8″

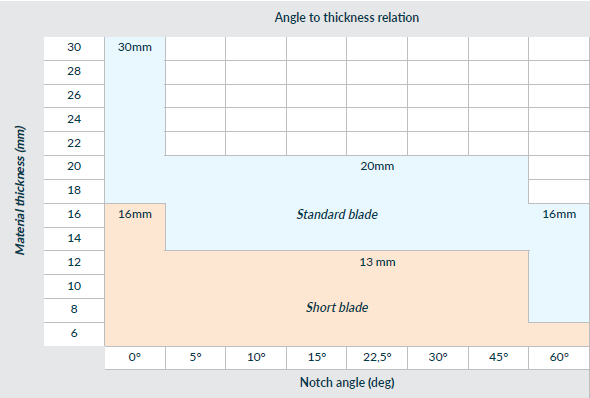

The maximum cutting thickness for a straight cut (0 degrees) is 16 mm. Up to 45 degrees angle in material up to 13 mm thickness. Up to 60 degrees angle in material up to 6 mm thickness.

Image variangle knife.PNG

Requirements

To use BLD-SF620 on your Kongsberg PCS table, you need one of the following configurations.

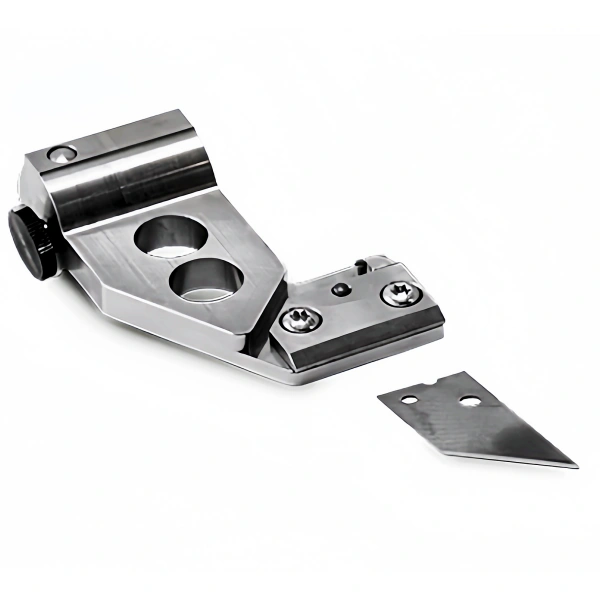

  • VariAngle Unit on C/XP with Short Blade Adapter 34127399

Dimensions

Length (cm) 6.8
Width (cm) 7.2
Height (cm) 1.1
Net weight (kg) 0.02
