Esko-BLD-SF502
Esko-BLD-SF502-blades

Esko Kongsberg BLD-SF502 Knife Blades (G42423269)

Esko Kongsberg BLD-SF501 Knife Blades (G42423251)
Esko Kongsberg BLD-SF505 Carbide Knife Blade (G42423293)

Designed for soft materials, the beveled edge structure improves cutting efficiency and can cut up to 40mm thick. Suitable for Kongsberg XL/XN/X and C/XP series models

Category:

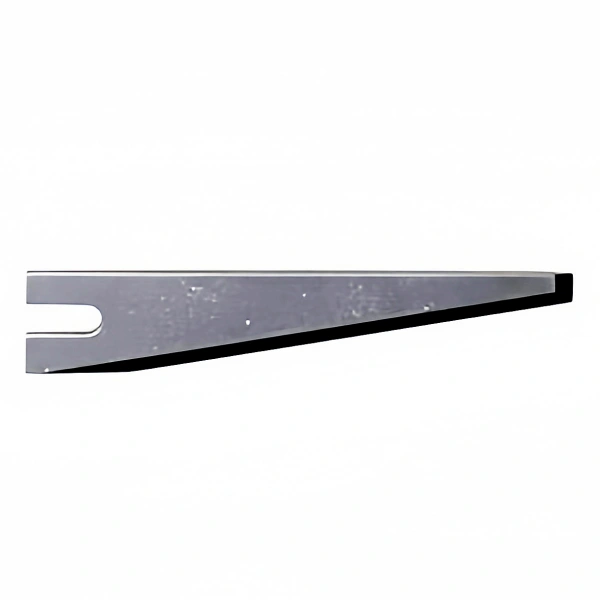

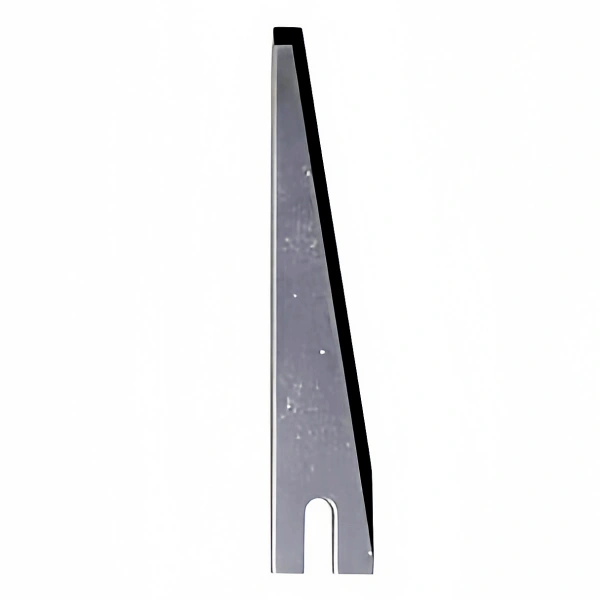

Esko Kongsberg BLD-SF502 Knife Blades (G42423269)

Description

This blade has the same advantages as SF501. The greater sloping edge allows for a slightly faster feed rate and improves cutting ability in softer materials. However, it will have a negative influence on quality effect with narrow curves.

Specifications

C Maximum cutting thickness 40 mm – 1 9/16″


Requirements

To use BLD-SF502 on your Kongsberg PCS table, you need one of the following configurations.

  • Foam knife tool for XL/XN/X with adapter 34010330
  • FoamHead for XL/XN/X with adapter 34014845
  • Foam unit for C/XP with adapter 34014845

Dimensions

Length (cm) 5.5
Width (cm) 1.1
Height (cm) 0.1
Net weight (kg) 0.003
