Esko Kongsberg BLD-SF421 Flat Oscillating Knife Blade for Digital Cutting Machines
Designed for Esko Kongsberg cutting equipment, the Esko Kongsberg BLD-SF421 oscillating blade has 63° and 84° cutting angles, making it suitable for precise cutting of a wide range of materials, including corrugated cardboard, foam board, rubber, polyester fabric, etc. With a blade thickness of 0.63 mm and a maximum cutting depth of 17.20 mm, it provides stable and efficient cutting performance, making it ideal for applications such as packaging, industrial and composite processing.
- Description
Esko Kongsberg BLD-SF421 Oscillating Knife blade G42458257

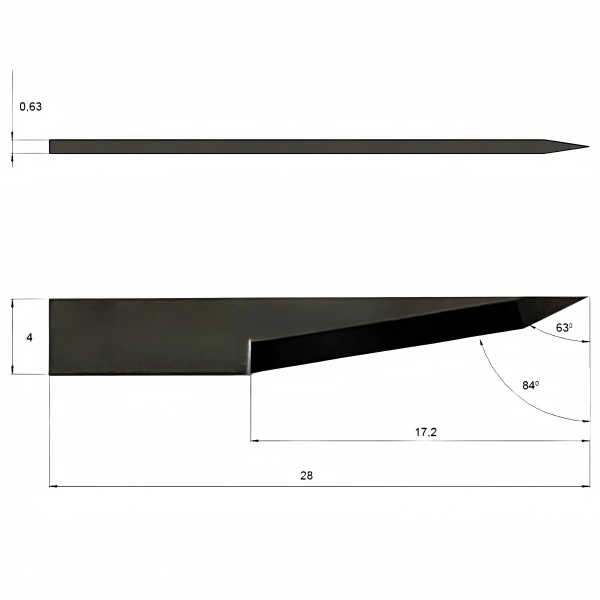

Technical Specifications
| Item | Specification |
|---|---|
| Model | BLD-SF421 |
| Part Number | G4245825 |
| Brand | Esko Kongsberg |
| Material | Tungsten Carbide |
| Mounting | Flat 0.63 mm |
| Knife Height | 28.00 mm |
| Blade Width | 4.00 mm |
| Thickness | 0.63 mm |
| Cutting Angle | 63° / 84° |
| Max Cutting Depth | 17.20 mm |
| Blade Type | Flat Oscillating Blade |
| Replacement | Yes |
Product Overview
The Esko Kongsberg BLD-SF421 oscillating knife blade (G4245825) is a premium tungsten carbide blade engineered for digital cutting systems. Featuring an advanced dual-angle geometry (63°/84°), it delivers accurate and efficient cutting capabilities across various materials.
It is a reliable replacement blade for Kongsberg cutting machines, offering durability and consistent performance in industrial applications.
Applications
This oscillating blade is suitable for cutting:
Corrugated cardboard
Corrugated plastic
Foam board
Folding carton
Felt
Rubber
Magnetic foil
Polyester fabric
FAQ
What machines is the SF421 blade compatible with?
It is compatible with Esko Kongsberg digital cutting systems.
What materials can this blade cut?
It can cut cardboard, foam, rubber, textiles, and other industrial materials.
What is the blade angle?
It features dual cutting angles of 63° and 84°.
Is this a replacement blade?
Yes, it is a compatible replacement for Esko BLD-SF421 (G4245825).
