Esko Kongsberg BLD-SF420 Carbide Oscillating Blades G42421974

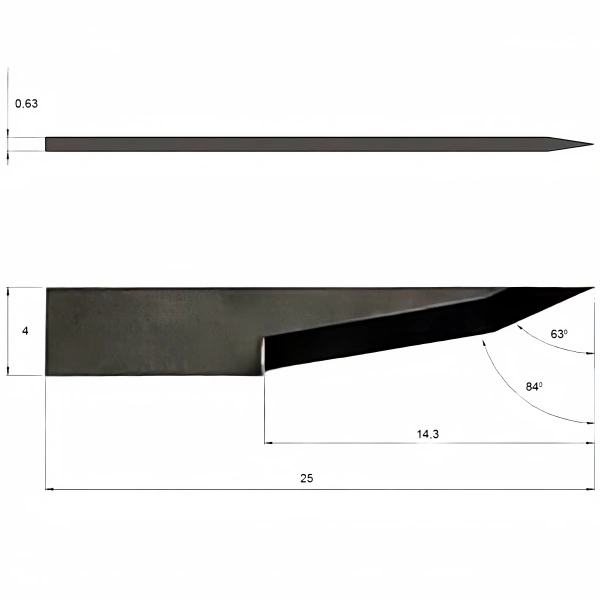

Esko Kongsberg BLD-SF420 carbide vibrating blade (G42421974), 65° angle tip design, suitable for foam, corrugated cardboard, rubber and other materials, thickness 0.63mm, maximum cutting depth 14.3mm, compatible with Esko automatic cutting system.
- Description
Esko Kongsberg BLD-SF420 Carbide Oscillating Blades G42421974
CUTTER BRAND
Esko Kongsberg
ANGLE
65°
KNIFE HEIGHT
25,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
14,30 mm
KNIFE TYPE
Flat, Oscillating blade, Pointed
MATERIALS
Corrugated cardboard, Corrugated plastic, Felt, Foam board, Folding Carton, Magnetic foil, Polyester fabric, Rubber
KNIFE/BLADE MOUNTING
flat 0,63 mm
Product Introduction：

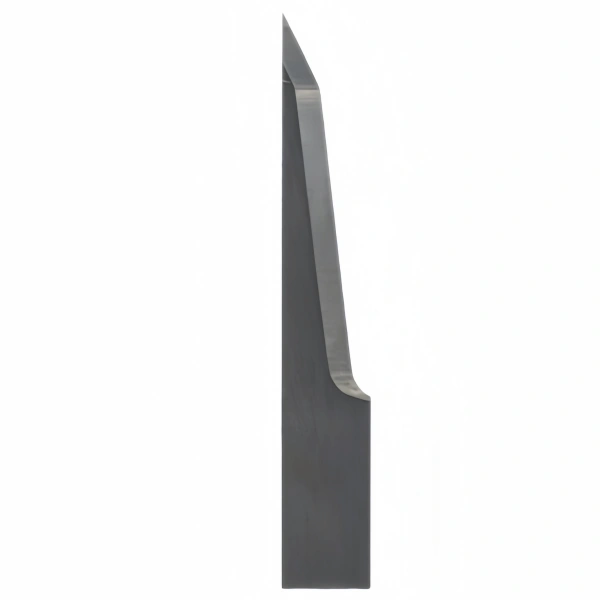

The Esko BLD-SF420 (model G42421974) is a high-precision carbide vibrating blade with a sharp tip and a 65° angle design for Esko Kongsberg digital cutting systems. The blade is 25mm high, only 0.63mm thick, and has a maximum cutting depth of 14.3mm. It is suitable for a variety of materials such as corrugated cardboard, foam board, folding carton, polyester cloth, magnetic film and rubber materials. It is an ideal tool for industrial flexible material processing.
