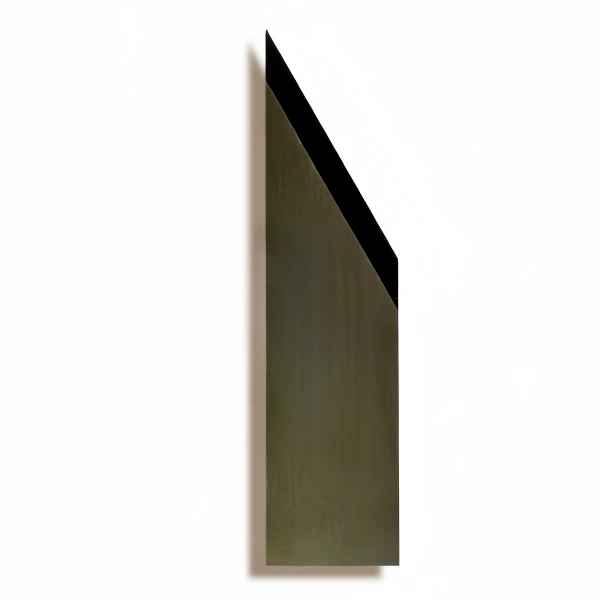

Esko Kongsberg BLD-SF320 Carbide Knife Blade (G42423871)
Esko Kongsberg BLD-SF320 tungsten carbide blade, suitable for general purpose cutting, supports corrugated cardboard and gasket materials, 60° cutting angle, maximum cutting depth of 16mm,
- Description
Esko Kongsberg BLD-SF320 carbide Knife Blades (G42423871) tangential knife cnc Single Edge Flat Blades For Esko Kongsberg Machine General Purpose Cutting
CUTTER BRAND
Esko Kongsberg
ANGLE
60°
KNIFE HEIGHT
38,00 mm
KNIFE WIDTH
9,50 mm
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
16,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Corrugated cardboard, Gasket materials
KNIFE/BLADE MOUNTING
flat 1 mm
Product Description:

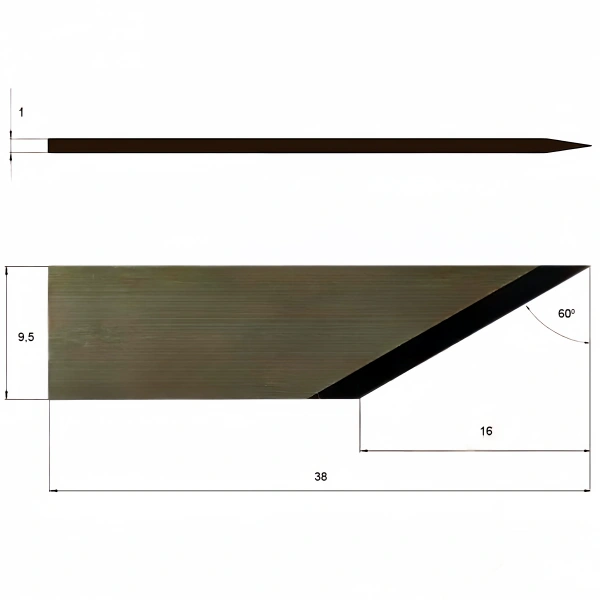

The BLD-SF320 is a single-edged, flat-bottomed tungsten carbide blade designed for Esko Kongsberg CNC cutting machines for general material cutting applications. The blade features a 60° cutting angle design, a blade height of 38 mm, a width of 9.5 mm, a thickness of 1 mm, and a maximum cutting depth of 16 mm, making it suitable for industrial materials such as corrugated cardboard and gasket materials. The flat-bottom 1 mm mounting method ensures stable mounting and accurate cutting, making it a high-performance replacement tool commonly used in industrial manufacturing and packaging industries.
