Esko Kongsberg BLD-KC104 Kiss Cut Knife Blade (G42447532)

Esko Kongsberg BLD-KC103 Carbide Knife Blade G42458323
Esko Kongsberg BLD-KC105 Knife Blades (G42458331)

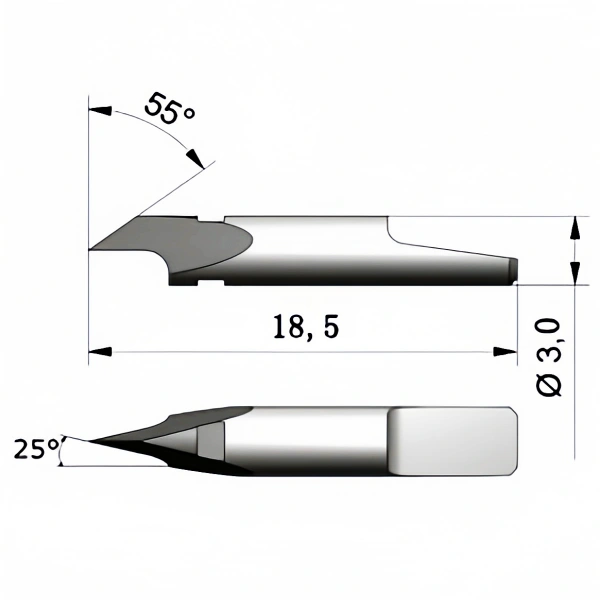

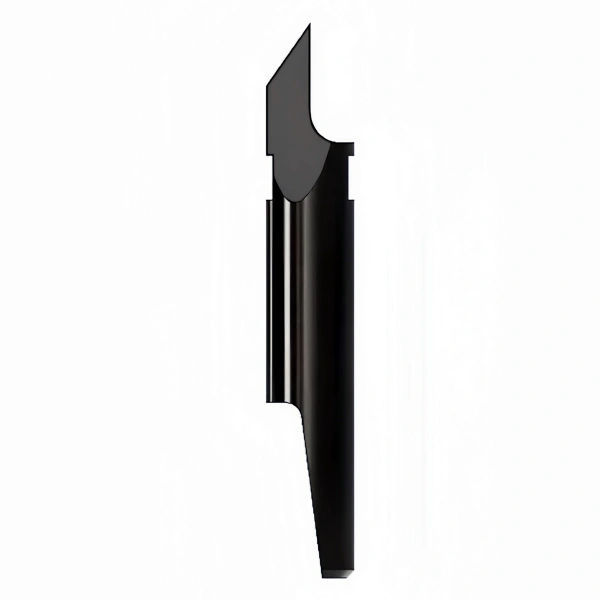

The Esko Kongsberg BLD-KC104 Kiss Cut Blade (Part No. G42447532) has a 55° cutting angle, 3mm blade width, 18.5mm blade height, 3mm thickness and a maximum cutting depth of 2.1mm. This blade is a drag blade design specifically designed for kiss cutting and is suitable for a variety of materials including folding cartons, magnetic films, masking films, polycarbonate, reflective films and self-adhesive films. Interchangeable design, compatible with Zünd 3910116 Z4, Esko Kongsberg G42447532, Blackman & White Bw Kiss Cut 4 and Gerber MCT KC4 895004



Category:

Esko Kongsberg BLD-KC104 Kiss Cut Knife Blades (G42447532)

CUTTER BRAND
Esko Kongsberg

ANGLE
55°

KNIFE WIDTH
3,00 mm

KNIFE HEIGHT
18,50 mm

THICKNESS
3,00 mm

MAX. CUTTING DEPTH
2,10 mm

KNIFE TYPE
Drag blade, Kiss Cut

MATERIALS
Folding Carton, Magnetic foil, Masking film, Polycarbonate, Reflective foil, Self-adhesive foil

Replacement for:

Zünd 3910116 Z4,Esko Kongsberg G42447532 42447532 BLD-KC104 KC14,Blackman & White Bw Kiss Cut 4,Gerber MCT KC4 895004
