Esko Kongsberg BLD-DR6160 C2 Coated Knife Blades G42475756

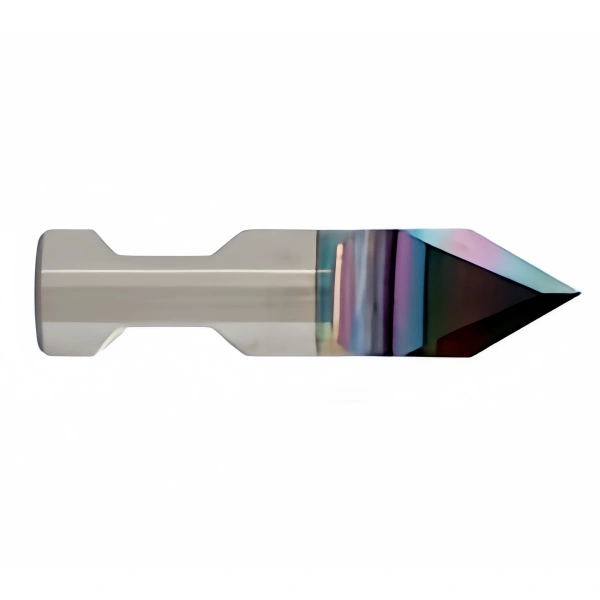

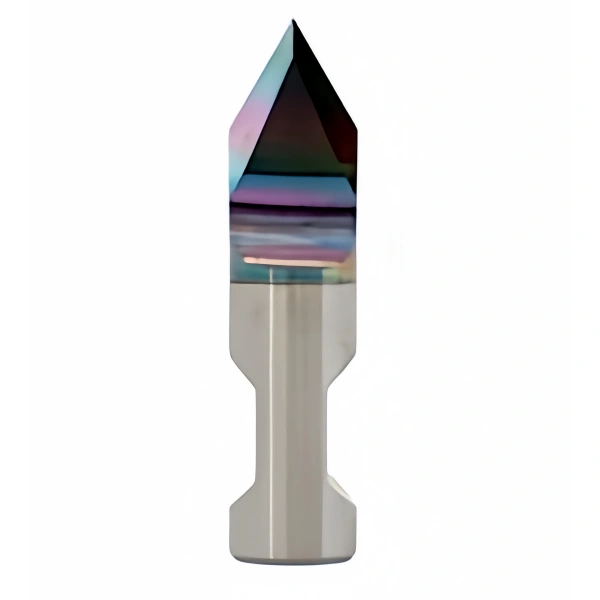

Esko Kongsberg BLD-DR6160 C2 Coated Knife Blades G42475756 Tungsten carbide blade for thinner flexible or rigid materials such as solid carton, vinyl and plastics. 2×30* cutting angle. Spear-headed shape.
- Description
Esko Kongsberg BLD-DR6160 C2 Coated Knife Blades G42475756
Tungsten carbide blade for thinner flexible or rigid materials such as solid cartons, vinyl, and plastics. 2×30* cutting angle. Spear-headed shape.
The Tungsten carbide thin coating provides a super hard and smooth surface with 60% reduced friction. This means less lift and pull when milling, ensuring less power consumption. It increases therefore productivity for sign applications. The coating extends x6 the lifetime of the product, it’s biocompatible and harmless for the environment.
Length (cm) 2.5
Width (cm) 0.6
Height (cm) 0.6
Net weight (kg) 0.007
D Shank diameter 6mm
C Maximum cutting thickness 5mm – 3/16″
To use BLD-DR6160 C2 on your Kongsberg PCS table, you need one of the following configurations.
- Hi-Force Knife tool on C/XP/XE with adapter 34068759
- VariCut knife tool on XE with adapter 34061135
- Static knife tool on XE with adapter 34061135
- Psaligraphy knife tool on C/XP/XL/XN/X/V/XE adapter n/a
| Material | Sub Category | Thickness | Method |
|---|---|---|---|
| Adhesive (decal) vinyl | Adhesive (decal) vinyl | Standard thickness | Through |
| Corrugated plastic | Corrugated plastic | < 5mm | Static |
| Flexible plastic sheet | Flexible plastic sheet | < 2mm | Static |
| Foam board soft (PUR) | Foam board soft (PUR) | < 5mm | Static |
| Foamed PVC / PS | Foamed PVC / PS (Forex®, Sintra®) | < 5mm | Static |
| Folding carton | Folding carton | Folding carton | Static |
| Lenticular display panels | Lenticular display panels | < 5mm | Static |
| Magnetic foil | Magnetic foil | Magnetic foil | Static |
| Solid board | Display board | 3mm | Static |
