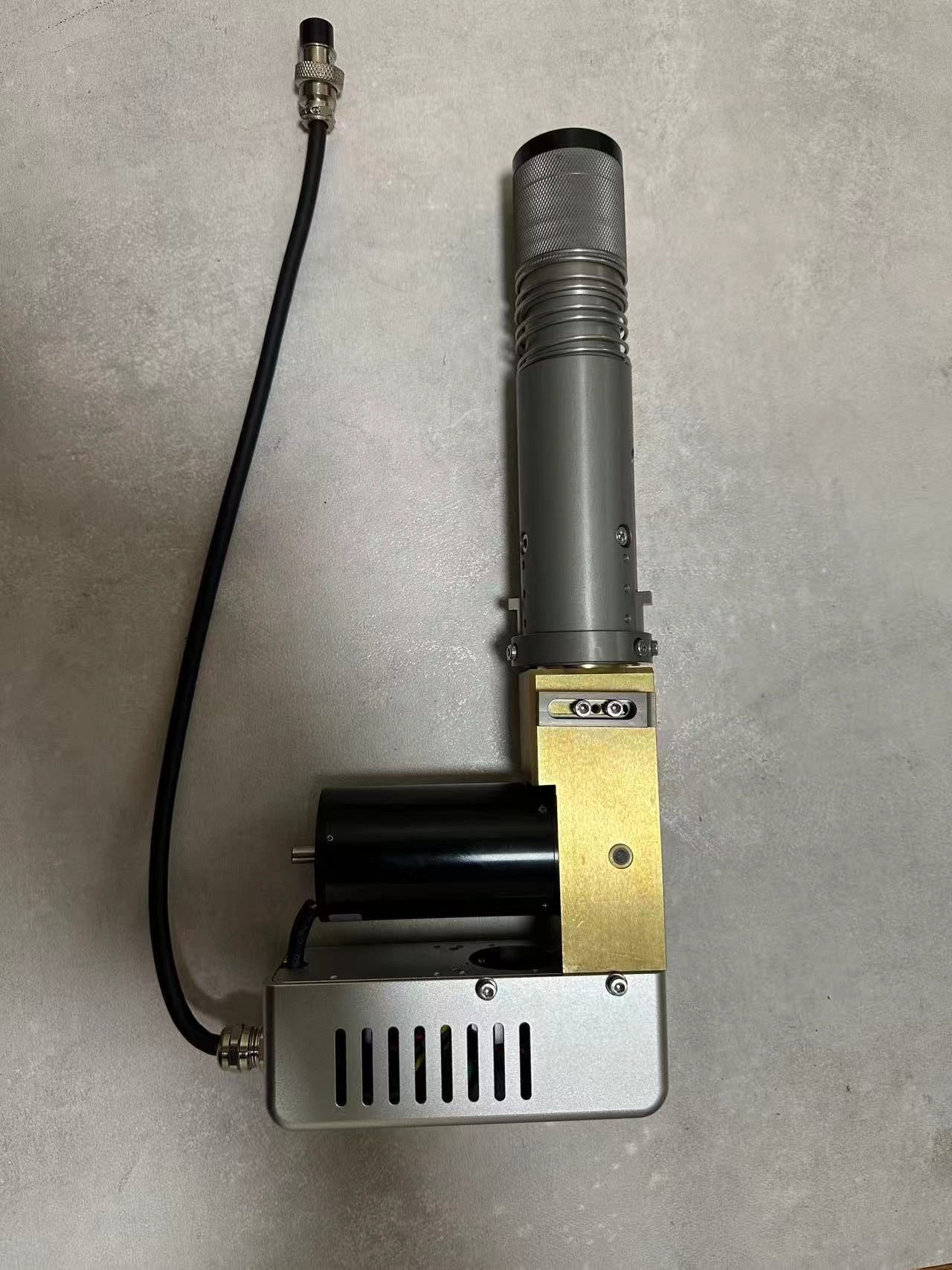

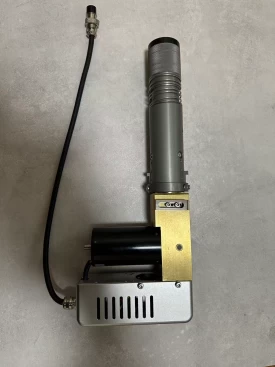

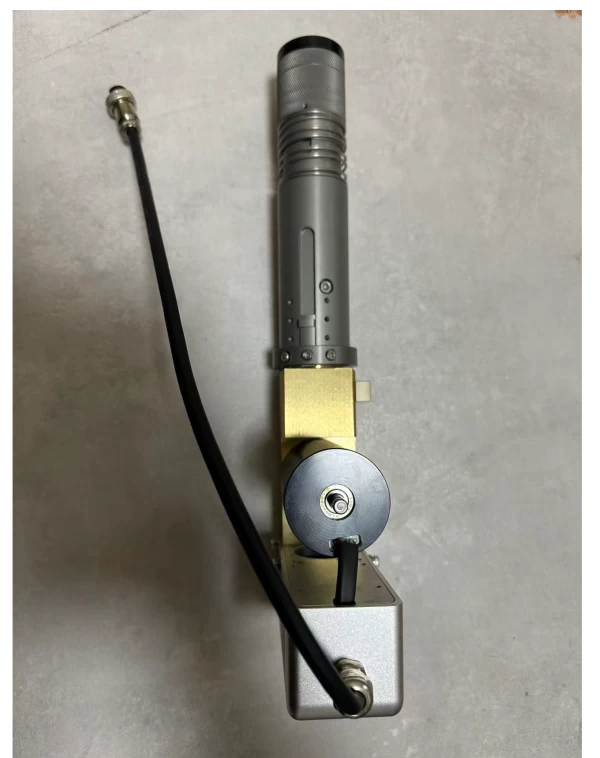

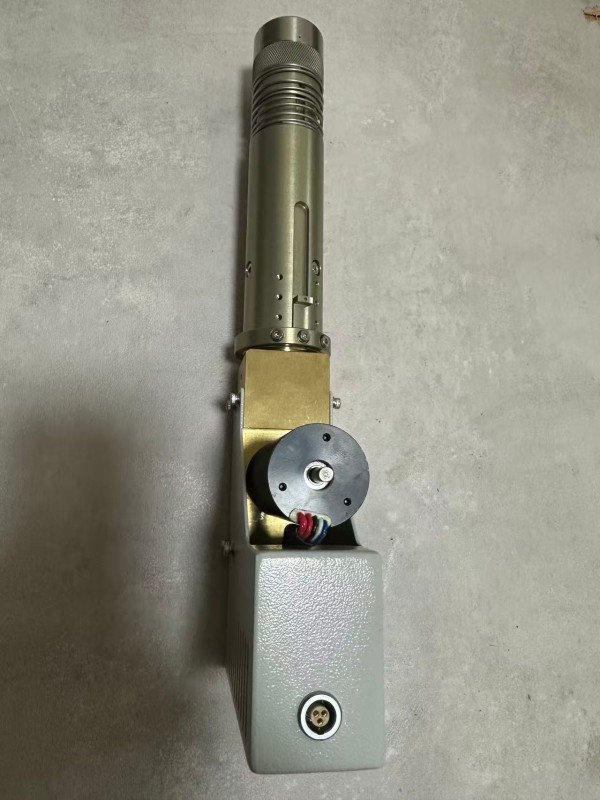

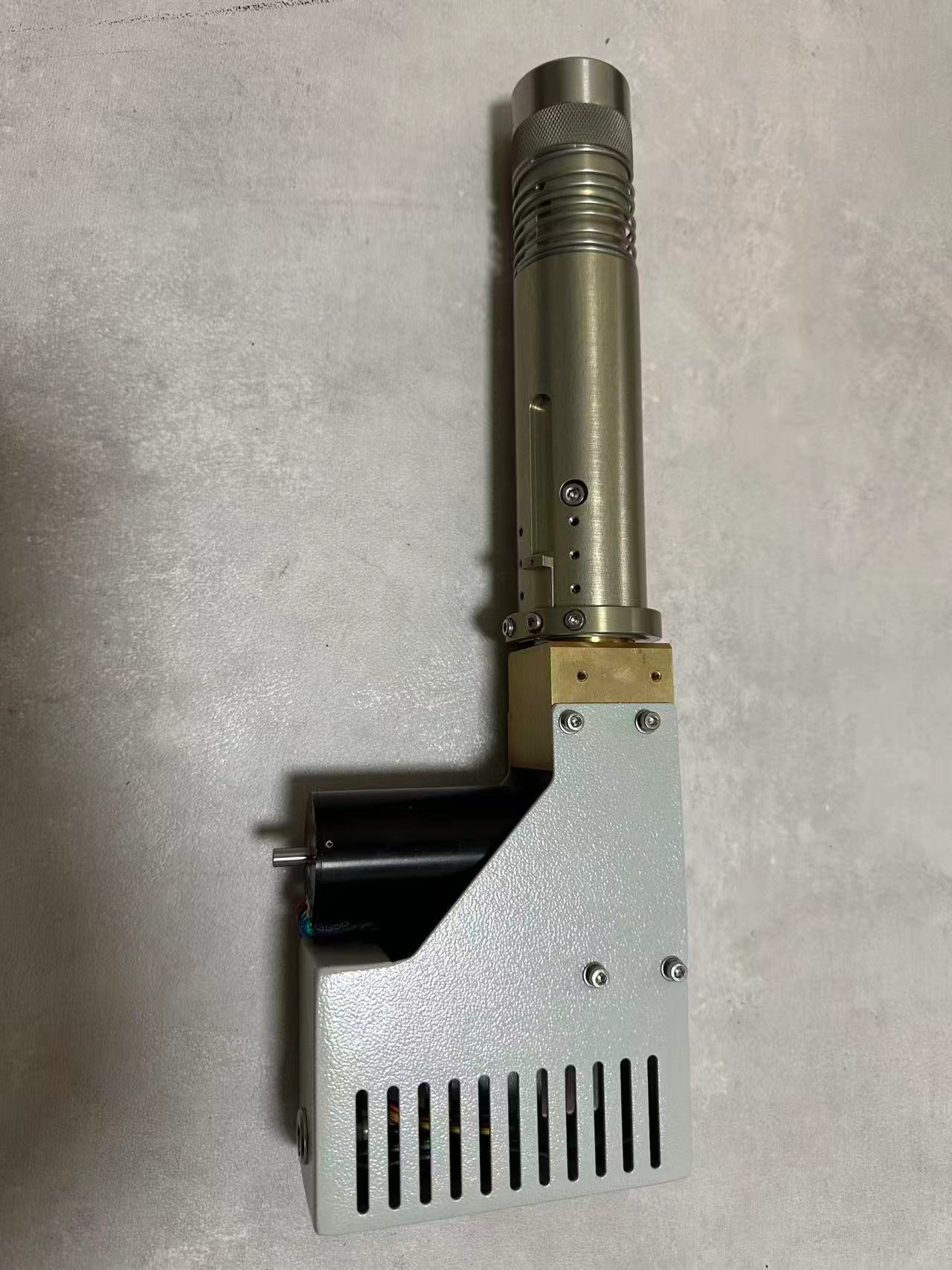

Electric Oscillating Tool (EOT) for Digital Cutting Systems
Specifically crafted for digital flatbed cutting systems
Tailored for soft to medium-density materials
Supports 0.5 mm and 1.0 mm oscillating blades
Delivers exceptional precision for intricate shapes and detailed designs
Operates at high oscillation speeds of up to 18,000 strokes per minute
A dependable, efficient, and production-ready tooling option
- Description
Electric Oscillating Knife Tangential Tool Vibration Cutting Head for Digital Cutting Machine
Product Overview：
The Electric Oscillating Tool (EOT) is a versatile, high-performance cutting solution tailored for flatbed digital cutting systems. It is expertly designed to handle soft to medium-density materials that present challenges for conventional drag knives. With its rapid oscillating motion, the EOT ensures precise, clean cuts through materials like corrugated board, foam, leather, honeycomb board, and cardboard. This advanced tool delivers exceptional edge quality, even when working with intricate shapes and complex designs.
Performance and Functionality：
The EOT is designed to accommodate interchangeable oscillating blades in thicknesses of 0.5 mm and 1.0 mm, providing flexibility to handle various materials and meet diverse cutting needs. Operating at a high stroke frequency of up to 18,000 strokes per minute, it delivers rapid processing speeds while maintaining exceptional precision. This makes it well-suited for both large-scale industrial production and intricate design tasks. Its electric oscillating motion minimizes material resistance during cutting, ensuring cleaner edges, reduced deformation, and enhanced cutting accuracy, even in demanding applications.
Compatible Materials：
The Electric Oscillating Tool (EOT) is suitable for cutting:
Cardboard – packaging, display and prototyping
Corrugated board (vertical & standard)
Foam materials – packaging foam, insulation foam
Leather – footwear, accessories, upholstery
Honeycomb board – lightweight structural panels
Common Uses：
Production of packaging and displays
Creation of signage and graphic designs
Manufacture of footwear and leather products
Processing foam and producing protective packaging
Prototyping and small-batch production
Reasons to Select Our EOT
Reliable cutting performance on challenging materials
Versatile blade choices to suit various thickness requirements
Enhanced productivity through high-speed operation
Delivers precise and clean cutting outcomes
Perfect for professionals utilizing digital cutting systems
