Ecocam-E70-blades
Ecocam-E70-blade

ECOCAM E70 Carbide Round Shank shaft Wedge Knife Blade

Ecocam E50 Solid carbide Round Shank shaft oscillation ​(VHM)Knife Blade
Ecocam E85 Carbide Round Shank shaft oscillation​(VHM)Knife Blade

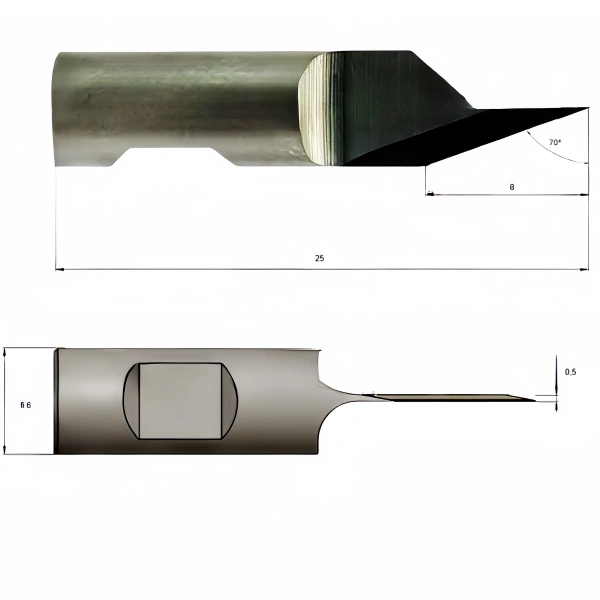

The Ecocam E70 solid tungsten steel round shank oscillating blade is designed for the Ecocam TCM-4 and TCM-3 modules and is suitable for precise cutting of a variety of materials such as films, magnetic films, reflective films, self-adhesive films, tarpaulins and vinyl, etc. The blade height is 25mm, the cutting angle is 70°, and the maximum cutting depth is 8mm, providing smooth and precise cutting results, suitable for precision industrial applications.

Category:

Ecocam E70 Solid carbide Round Shank shaft ​oscillation(VHM)Knife ​Blade E70 Solid Carbide Wedge Blade for CNC Tangential Cutting Modules


CUTTER BRAND
ECOCAM

KNIFE HEIGHT
25,00 mm

ANGLE
70°

MAX. CUTTING DEPTH
8,00 mm

MATERIALS
Foil, Magnetic foil, Masking film, Reflective foil, Reflective vinyl film, Self-adhesive foil, Self-adhesive vinyl film, Tarpaulin, Vinyls

KNIFE TYPE
Drag Blade, Kiss Cut, Weldon

KNIFE/BLADE MOUNTING
round Ø 6 mm

Knife dedicated for cutters with Ecocam TCM-4, TCM-3 modules.
Diameter of the holder: Ø 6 mm
