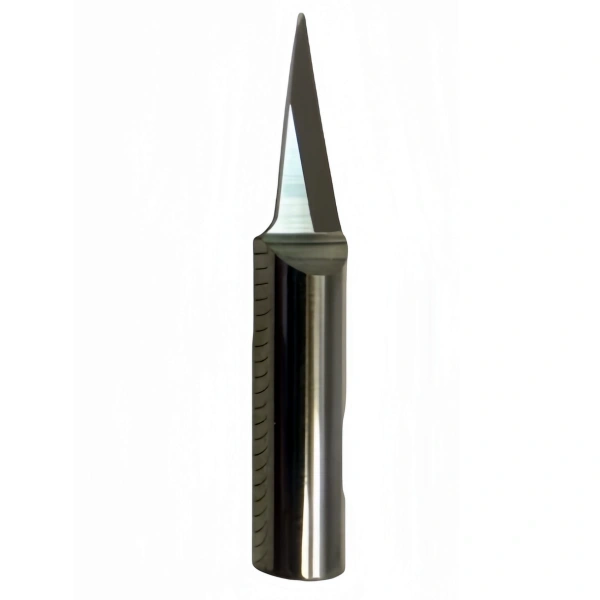

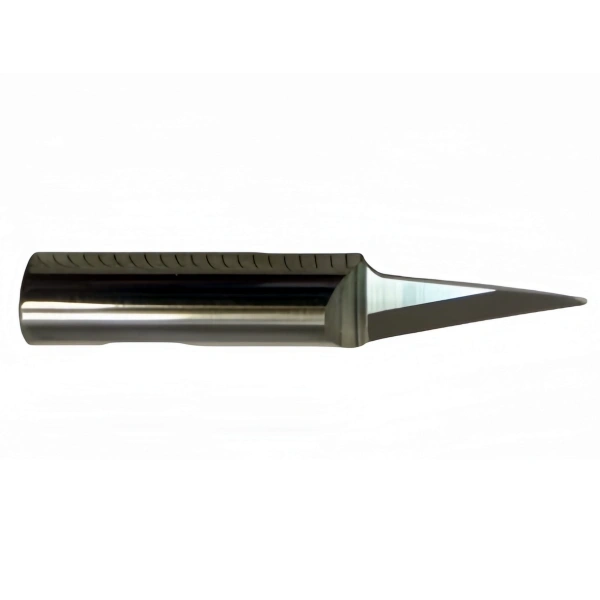

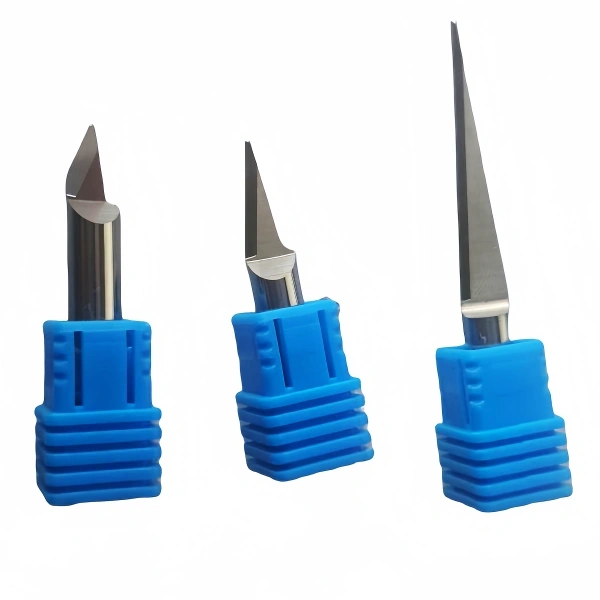

Comagrav ONF ONK Whole series oscillating knives/knife blades
ONK – knives for cutting corrugated cardboard, rubber, and hard materials. The tool has a small radius on the bottom to prevent unexpected wear.
ONF – knives for cutting fibrous materials. The knife is flat on the bottom, so it cuts all fibers. These knives are usable for oscillating cutting heads COMAGRAV, primarily designed for pneumatic heads. Using a special adapter can be used also in an electric oscillation unit.
| Code | PN x DR x CDN x UB |
| ONK6 | 6 x 6 x 36 mm |
| ONK10 | 6 x 10 x 36mm |
| ONK15 | 6 x 15 x 36mm |
| ONK25 | 6 x 25 x 46mm |
| ONK30 | 6 x 30 x 55mm |
| ONK50 | 6 x 50 x 68mm |
| ONK65 | 6 x 65 x 81mm |
| ONK90 | 6 x 90 x 110mm |
| ONK110 | 6 x 110 x 118mm |
| ONF10 | 6 x 10 x 36mm x 68° |
| ONF15 | 6 x 15 x 36mm x 73° |
| ONF20 | 6 x 20 x 39mm x 89° |
| ONF30 | 6 x 30 x 46mm x 82° |
| ONF35 | 6 x 35 x 55mm x 86° |
| ONF40 | 6 x 40 x 57mm x 87° |
| ONF60 | 6 x 60 x 83mm x 86,8° |
