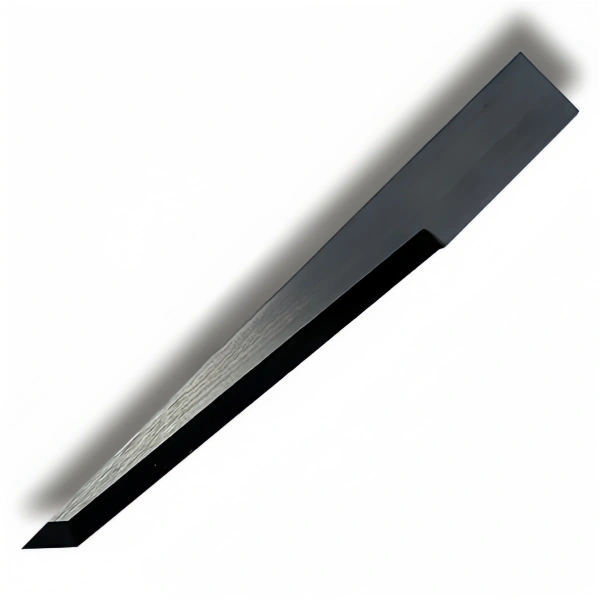

Comagrav FNS16 Tungsten Carbide Oscillating Knife blades

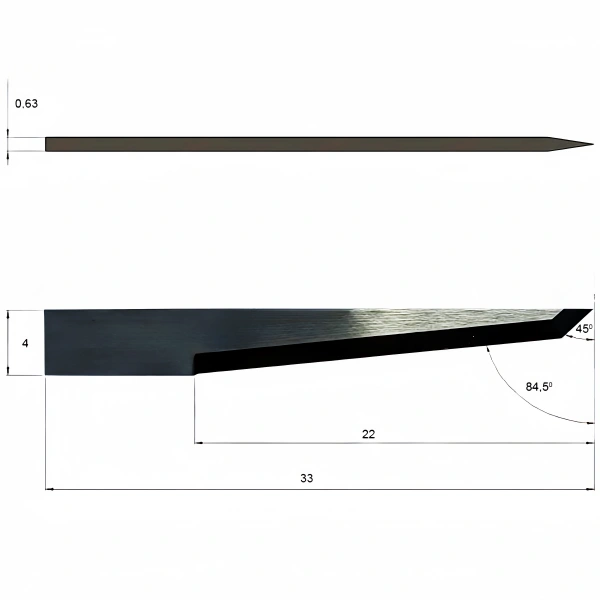

Comagrav FNS16 carbide vibrating blade, dual angle design 45°/84.5°, blade height 30mm, suitable for cutting corrugated cardboard, foam board, rubber and other materials, equipped with flat blade installation, cutting depth up to 22mm.
- Description
Comagrav FNS16 Tungsten Carbide Oscillating Knife blades
CUTTER BRAND
Comagrav
ANGLE
45°/84,5°
KNIFE HEIGHT
30,00 mm
KNIFE WIDTH
4,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
22,00 mm
KNIFE TYPE
Flat, Oscillating blade, Pointed
MATERIALS
Corrugated cardboard, Corrugated plastic, Foam board, Folding Carton, Rubber
KNIFE/BLADE MOUNTING
flat 0,63 mm
Product Short Description：
Comagrav FNS16 is a high-quality carbide vibrating blade with dual cutting angles (45° and 84.5°), a blade height of 30mm, a width of 4mm, a thickness of 0.63mm, and a maximum cutting depth of 22mm. Suitable for cutting a variety of materials such as corrugated cardboard, corrugated plastic, foam board, folding carton and rubber, the blade adopts a flat edge design and is suitable for many automatic vibrating cutting machines.
