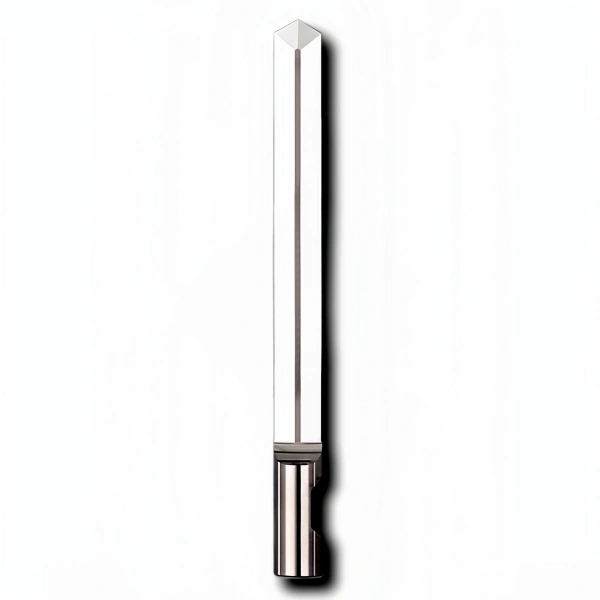

Axyz BT-56270 B2031L-70 Double Edge Flat Point Knife blades

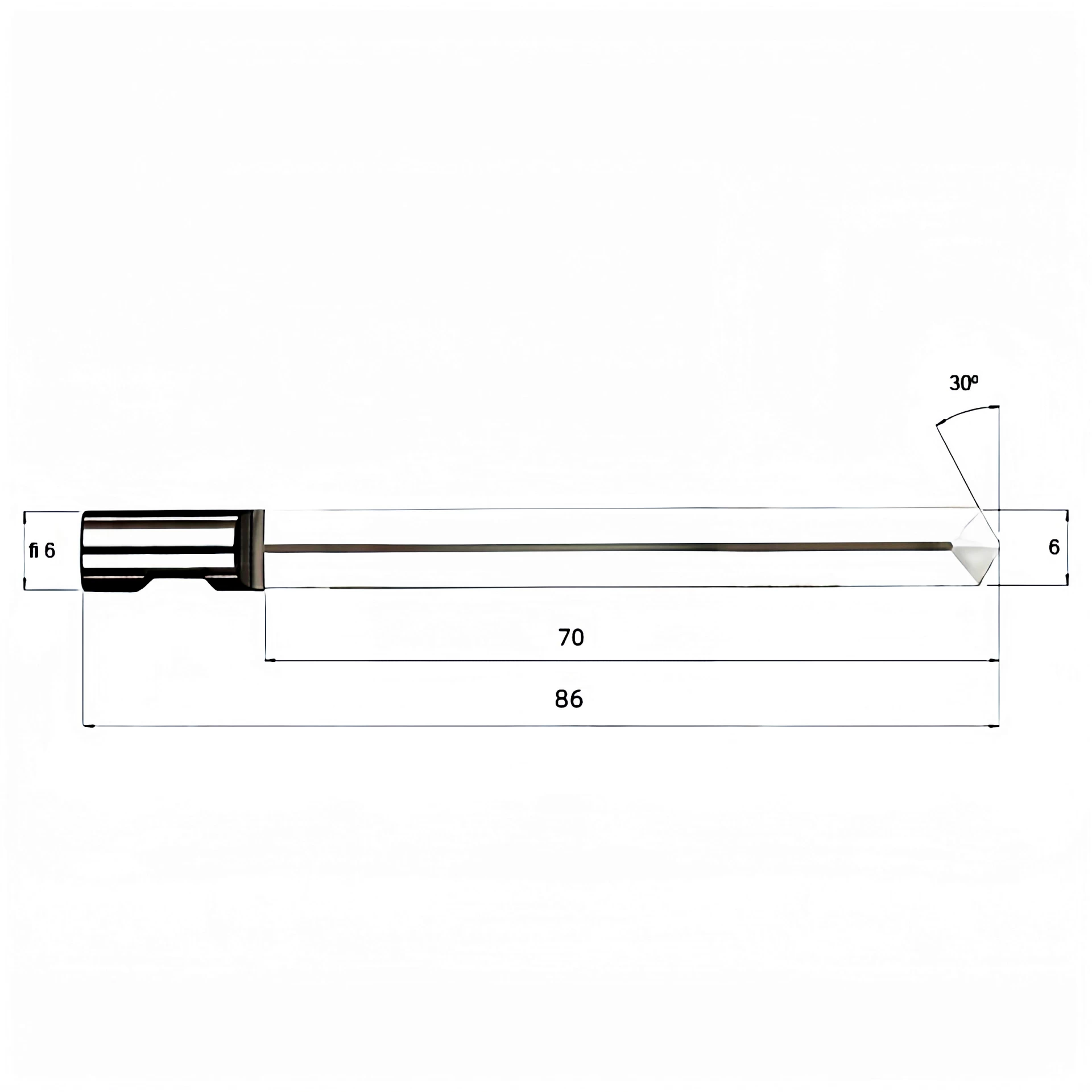

Designed for use with AXYZ cutters, the AXYZ BT-56270 B2031L-70 double edge flat blade features a 2×30° cutting angle and 86 mm blade height. The blade supports a maximum cutting depth of 69 mm and is suitable for processing a wide range of materials including aramid, canvas, carbon fiber, cardboard, cork, corrugated board, mulch, expanded polystyrene, felt, foam board, folding carton, gasket material, fiberglass, honeycomb, insulation mats, magnetic film, masking film, non-woven fabrics, packaging materials, paper, polyester fabrics, PVC, reflective film, rubber, synthetic materials and textiles. Blade types include oscillating blades and Weldon blades with a 6 mm round hole for mounting. This blade provides powerful cutting performance for a wide range of industrial applications.

Axyz BT-56270 B2031L-70 Double Edge Flat Point Knife blades

CUTTER BRAND
AXYZ

ANGLE
2×30°

KNIFE HEIGHT
86,00 mm

MAX. CUTTING DEPTH
69,00 mm

MATERIALS
Aramid fibers, Canvas, Canvas, Carbon fibers, Cardboard, Cork, Corrugated cardboard, Covering, Expanded polystyrene, Felt, Foam board, Folding Carton, Gasket materials, Glass fibers, Honeycomb, Insulating mat, Magnetic foil, Masking film, Non-woven fabric, Packaging materials, Paper, Polyester fabric, PVC, PVC, Reflective foil, Rubber, Synthetic materials, Textiles

KNIFE TYPE
Oscillating blade, Weldon

KNIFE/BLADE MOUNTING
round Ø 6 mm
