Atom blades Replacement 01R43856 Oscillating knife Atom R43856
Atom 01R43856 oscillating blade, suitable for ATOM automatic cutting equipment, blade angle 25°–0°, height 28mm, thickness 0.63mm, maximum cutting depth 12mm, compatible with soft materials such as aramid fiber, leather, carbon fiber
- Description

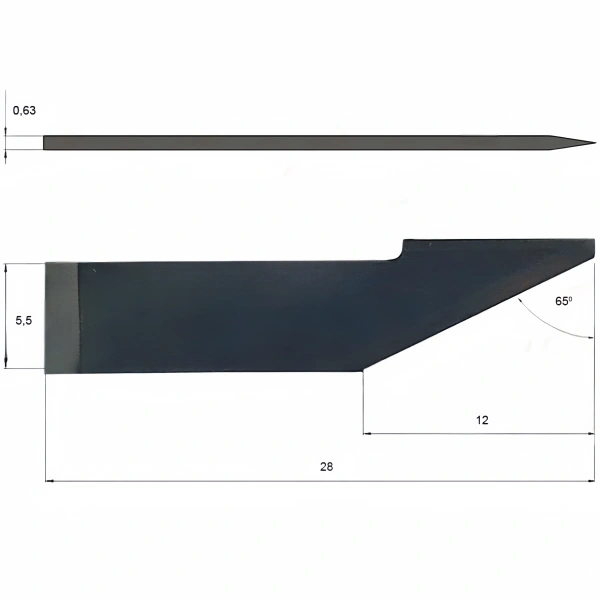

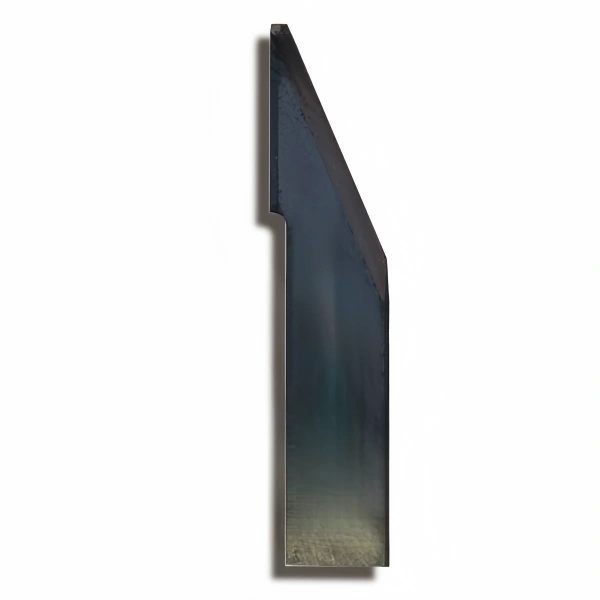

Atom 01R43856 Flashcut 25°-0°-1° HV1400 Tungsten Carbide Oscillating knife blades
CUTTER BRAND
Atom
ANGLE
25°-0°
KNIFE HEIGHT
28,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
12,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Aramid fibers, Carbon fibers, Corrugated cardboard, Felt, Foam board, Leather, Polyester fabric
KNIFE/BLADE MOUNTING
flat 0,63 mm
Product Description:
Atom 01R43856 is a high-performance tungsten steel oscillating blade compatible with the ATOM automated cutting system. The blade angle is 25°–0°, which enables it to maintain high precision and sharpness when cutting soft and medium-hard materials, and is suitable for a variety of industrial flexible material applications.
