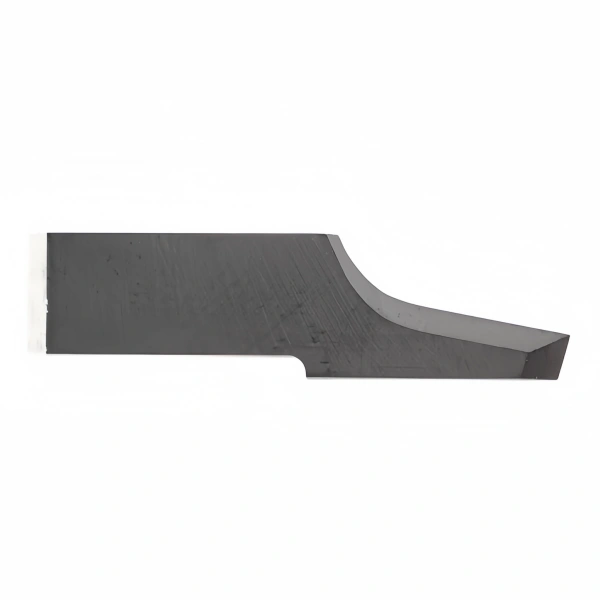

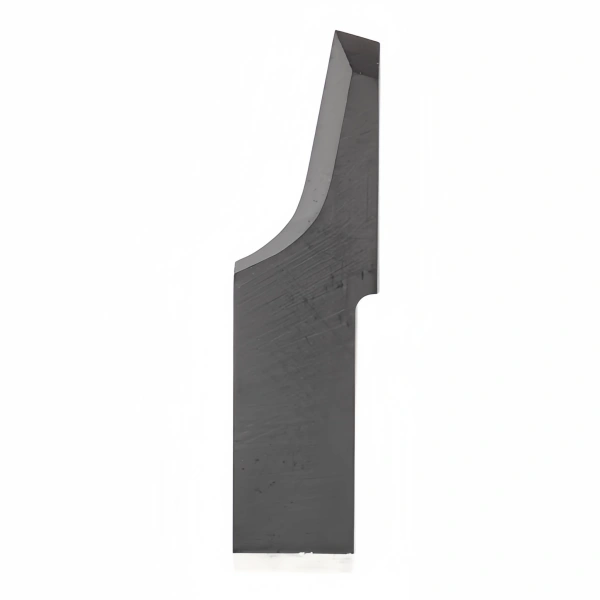

Atom 01R39999 Carbide Oscilation Blade knife DLC
Atom 01R39999 Tungsten Carbide Oscillating Blade (DLC) is compatible with ATOM cutting machines and has a cutting angle of 11°-15°. The blade height is 28.00mm, the width is 5.50mm, the thickness is 0.63mm, and the maximum cutting depth can reach 12.00mm. This flat edge oscillating blade is suitable for materials such as fiberboard, leather and Texon. It has replaceable characteristics and is installed in a flat 0.63mm format to ensure accurate and efficient cutting performance.
- Description
| Cutter brand | Atom |
|---|---|
| Angle | 11°-15° |
| Knife height | 28,00 mm |
| Knife width | 5,50 mm |
| Thickness | 0,63 mm |
| Max. cutting depth | 12,00 mm |
| Knife Type | Flat, Oscillating blade |
| Materials | Fiberboard, Leather, Texon |
| Replacement | Yes |
| Knife/blade mounting | flat 0,63 mm |
Blade features:
1: The blade is finished ground with virgin alloy, which has a long service life, less replacement of the blade, and improves production efficiency
2: The blade material is wear-resistant, high-temperature resistant, can work in a high-temperature environment, and is durable.
3: The blade is sharp, the cutting edge is neat and smooth without burrs
