Atom 01045556 Tungsten carbide double edge Oscillating knife blades
Atom 01045556 double-edged vibrating blade, made of tungsten steel, with a compound angle of 10°-25°-3°, suitable for efficient cutting of rubber, sponge, synthetic materials, etc., with a maximum cutting depth of 30mm.
- Description

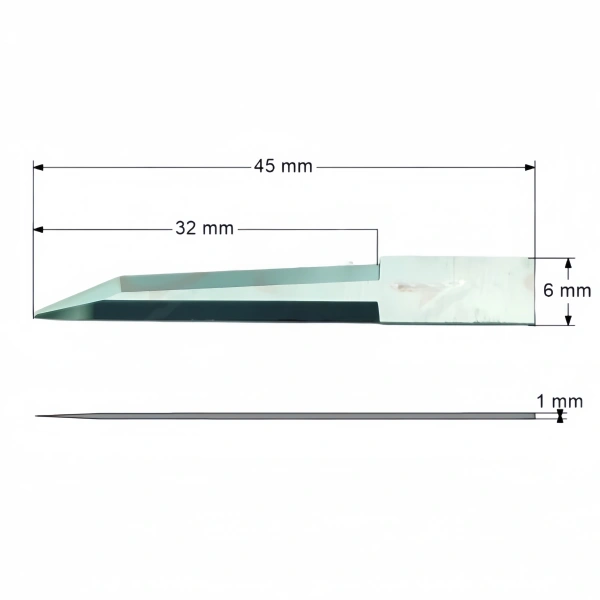

Technical Specifications
| Item | Specification |
|---|---|
| Model | 01045556 |
| Part Number | 45556 |
| Brand | Atom |
| Knife Type | Oscillating Blade |
| Mounting | Flat 1 mm |
| Knife Height | 45.00 mm |
| Blade Width | 6.00 mm |
| Thickness | 1.00 mm |
| Cutting Angle | 10° / 25° / 3° |
| Max Cutting Depth | 32.00 mm |
| Materials | Rubber, Sponge, Synthetic materials |
| Replacement | Yes |
Product Overview
The Atom 01045556 oscillating knife blade (45556) is a premium tungsten carbide instrument engineered for advanced deep-cutting operations. Capable of achieving a maximum cutting depth of 32mm, it is particularly suited for the precision processing of pliable and dense substrates such as rubber, sponge, and synthetic composites.
Its carefully optimized multi-angle geometry guarantees superior efficiency and accuracy in cutting performance across a broad scope of industrial applications.
Applications
This oscillating blade is suitable for cutting:
Rubber
Sponge
Synthetic materials
Foam-like industrial materials
FAQ
What materials can this blade cut?
It is designed for rubber, sponge, and synthetic materials.
What is the maximum cutting depth?
The maximum cutting depth is 32 mm.
Is this blade suitable for foam cutting?
Yes, it is ideal for foam-like materials including sponge.
Is this compatible with Atom machines?
Yes, it is a replacement blade for Atom cutting systems.
