Atom 45485 Carbide Oscillating Knife Blade Atom 01045485

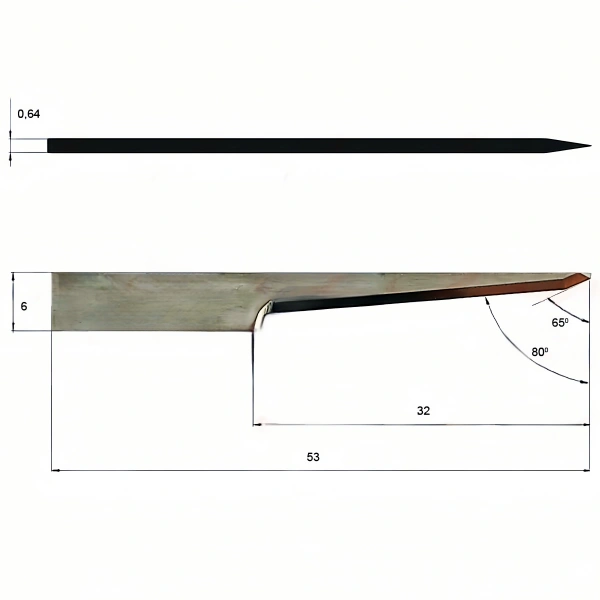

Atom 45485/01045485 tungsten steel vibrating blade, angle 5°-25°-10°, maximum cutting depth 32mm, thickness 0.64mm, suitable for cutting rubber materials, compatible with Atom automated cutting equipment.
- Description
Atom Flashcut 5°-25°-10° HV1600 oscylation Knife Blade 01045485
CUTTER BRAND
Atom
KNIFE HEIGHT
53,00 mm
ANGLE
5°-25°-10°
THICKNESS
0,64 mm
MAX. CUTTING DEPTH
32,00 mm
MATERIALS
foamed rubber, Rubber
KNIFE TYPE
Flat, Oscillating blade
KNIFE/BLADE MOUNTING
płaski 0,64 mm
Product Description:

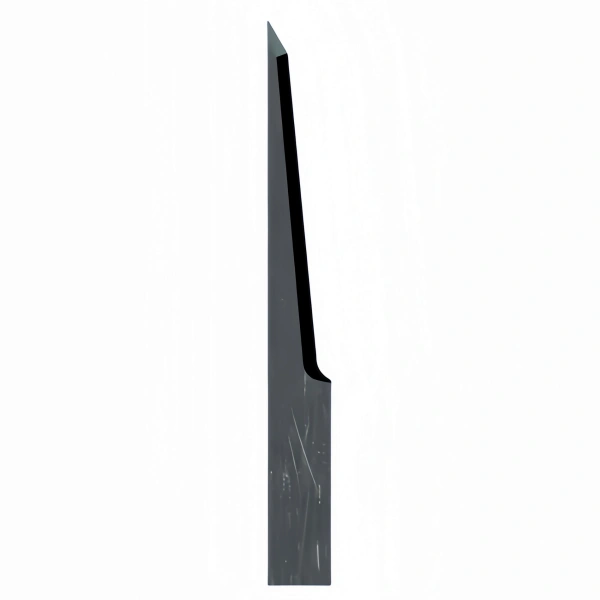

Atom 45485 / 01045485 Oscillating Blade is a high performance tungsten steel flat oscillating cutting blade designed for the Atom automatic cutting system. With a blade height of 53mm and a thickness of 0.64mm, it can achieve a maximum cutting depth of 32mm and performs well when cutting elastic rubber materials. It is particularly suitable for high-density materials such as foam rubber and solid rubber, and is an ideal tool choice for industries such as footwear manufacturing and industrial rubber product processing.
