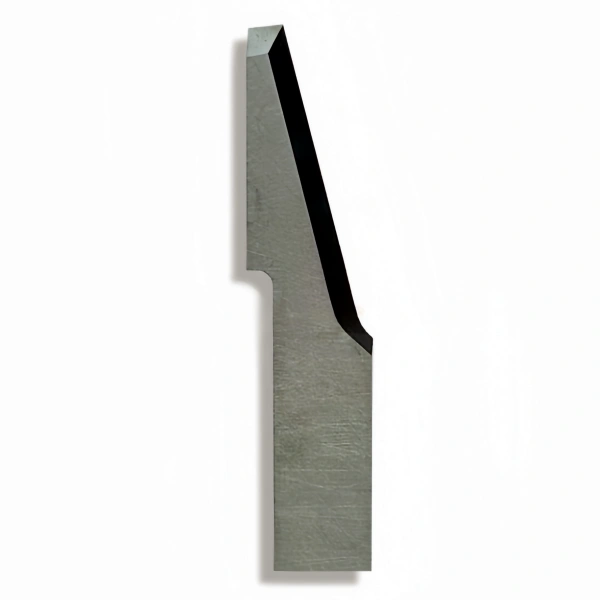

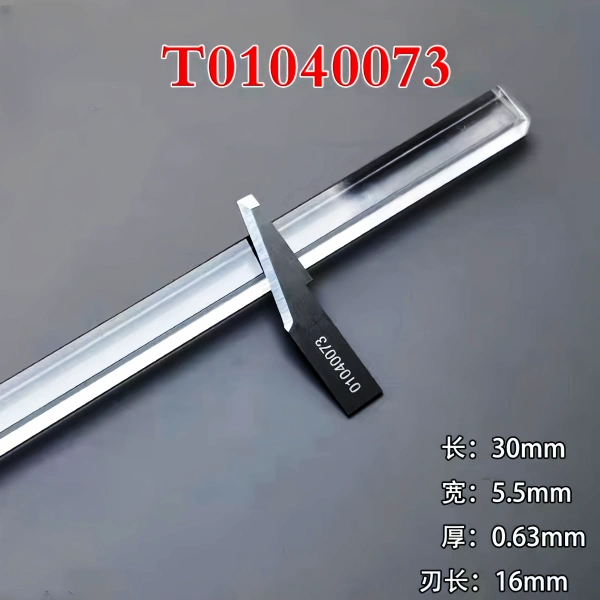

Atom 01040073 Carbide Oscillating Tangential Knife Blade

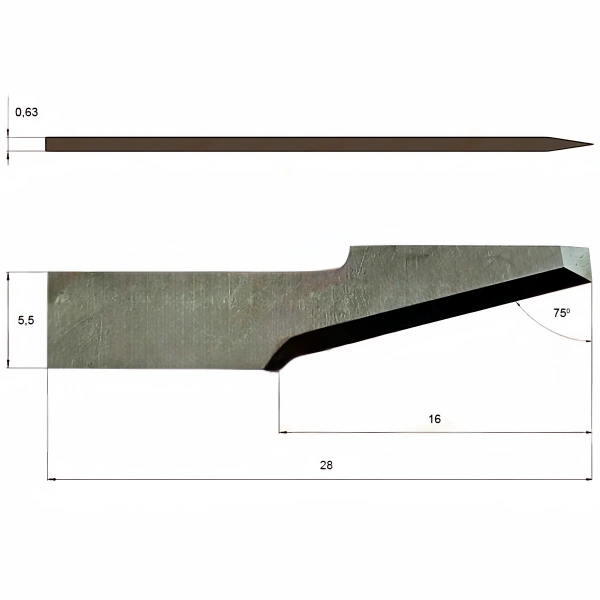

The Atom 01040073 carbide vibrating cutting blade is suitable for a wide range of materials such as aramid fiber, carbon fiber, corrugated cardboard, felt, foam board, leather and polyester cloth. With a blade angle of 5°-15° and a maximum cutting depth of up to 16 mm and a thickness of 0.63 mm, it provides efficient and precise flat vibrating cutting for a variety of industrial applications.
- Description
Atom 01040073 HV1400 Oscillating Knife Blade
CUTTER BRAND
Atom
ANGLE
5°-15°
KNIFE HEIGHT
28,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
16,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Aramid fibers, Carbon fibers, Corrugated cardboard, Felt, Foam board, Leather, Polyester fabric
KNIFE/BLADE MOUNTING
flat 0,63 mm
