Atom 0103A858 Tungsten Carbide Oscillating knife Blades
Atom 0103A858 tungsten carbide oscillating blade, suitable for cutting asbestos-free boards, leather, and cartons, 65° blade angle, maximum cutting depth 11mm, suitable for Atom and MLA cutting systems.
- Description

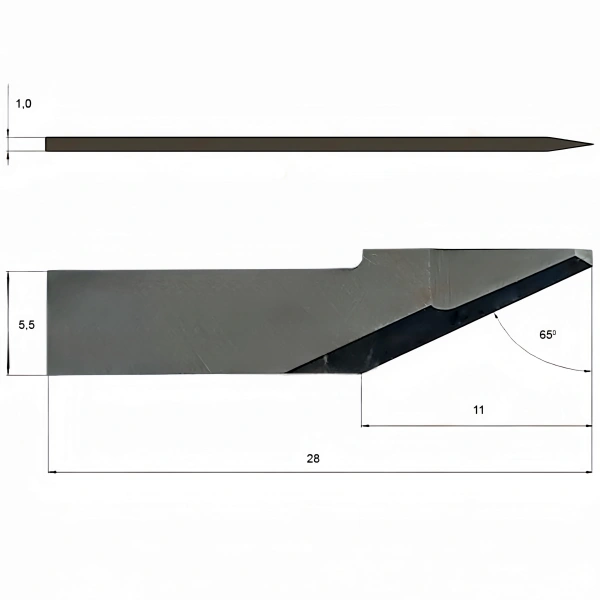

Atom 0103A858 Blades Kimla 28/16 typ HV1600 oscillating
CUTTER BRAND
Atom, mla
ANGLE
65°
KNIFE HEIGHT
28,00 mm
KNIFE WIDTH
5,50 mm
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
11,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Asbestos-free plates, Folding Carton, Leather
KNIFE/BLADE MOUNTING
flat 1 mm
Product Description:
The Atom 0103A858 is a high precision tungsten carbide blade for use with the Atom and MLA automated cutting systems. The blade has a 65° cutting angle for good penetration and clean edges, a blade height of 28 mm, a thickness of 1 mm and a maximum cutting depth of 11 mm. The flat 1 mm mounting ensures a secure fit. Suitable for materials such as asbestos-free board, folding carton, leather, etc., it is an ideal replacement tool for industrial cutting scenarios.
