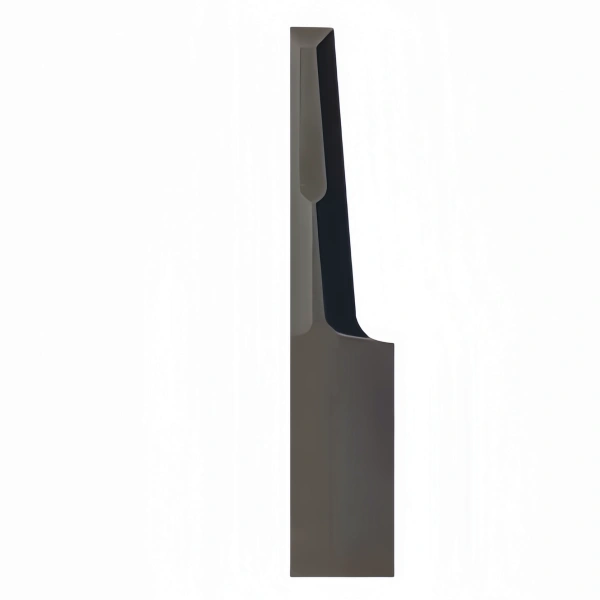

Atom 0103A776 HV1600 Tungsten Carbide Oscillating knife Blade

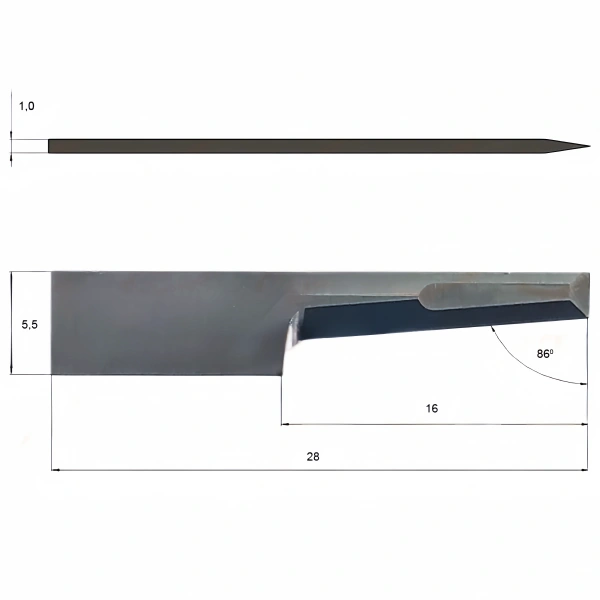

The blade is made of tungsten steel, with excellent wear resistance and high cutting accuracy, suitable for efficient cutting of corrugated cardboard and foam board. The cutting angle is 86°, the blade height is 28mm, the width is 5.5mm, the thickness is 1mm, and the maximum cutting depth is 16mm. Designed for flat 1mm installation, it is optimized for the Atom HV1600 series cutting machine.
- Description
Atom 0103A776 Blade Kimla 28/16 typ HV1600 oscillating knife
CUTTER BRAND
Atom, MLA
ANGLE
86°
KNIFE HEIGHT
28,00 mm
KNIFE WIDTH
5,50 mm
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
16,00 mm
MATERIALS
Corrugated cardboard, Foam Board
KNIFE TYPE
Flat, Oscillating blade
KNIFE/BLADE MOUNTING
flat 1 mm
