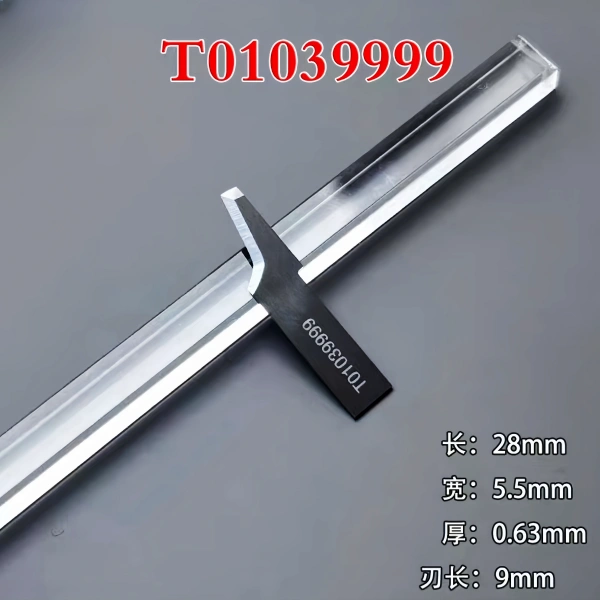

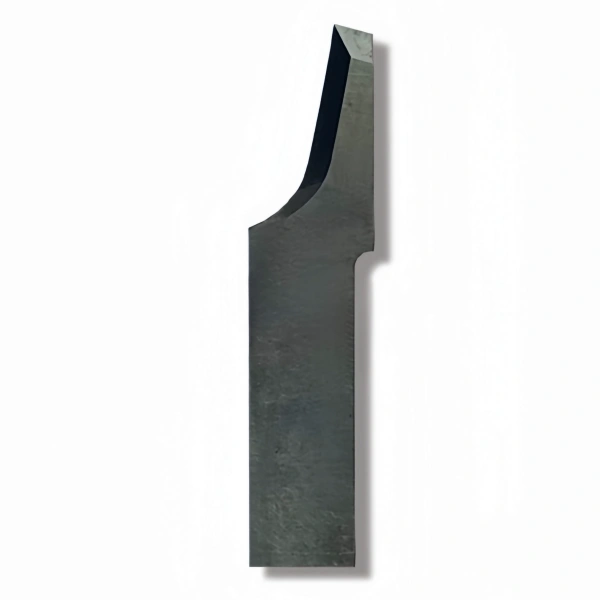

Atom 01039999 HV1600 Tungsten Carbide Oscillating knife Blades

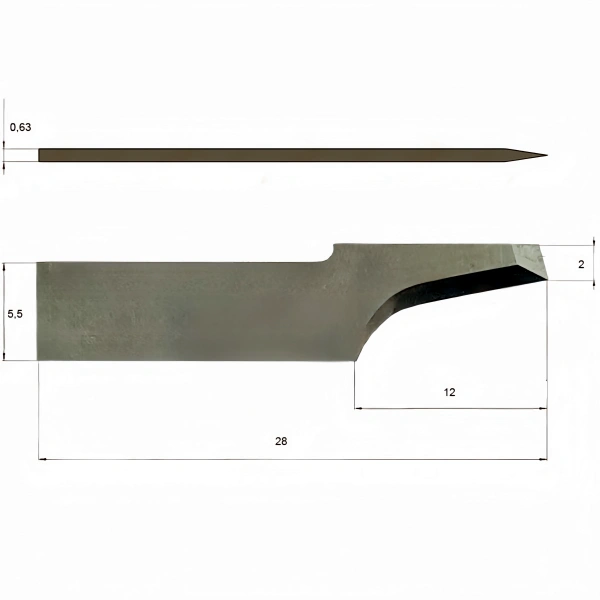

Atom 01039999 HV1600 oscillating blade is suitable for Atom and MLA automatic cutting machines. The blade is made of tungsten carbide, with an angle of 11°-15°, a height of 28mm, a width of 5.5mm, a thickness of 0.63mm, and a maximum cutting depth of 12mm. Suitable for fiberboard, leather, Texon and other materials
- Description
Atom 01039999 Slitting Blades HV1600 oscillating knife compatible for Atom automated cutting machine
CUTTER BRAND
Atom, MLA
ANGLE
11°-15°
KNIFE HEIGHT
28,00 mm
KNIFE WIDTH
5,50 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
12,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Fiberboard, Leather, Texon
KNIFE/BLADE MOUNTING
flat 0,63 mm
