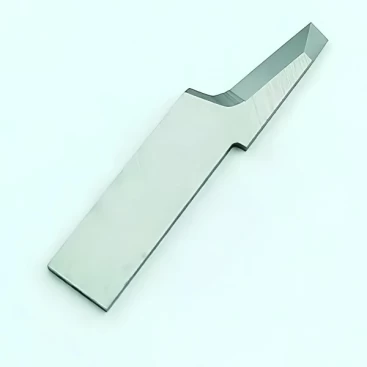

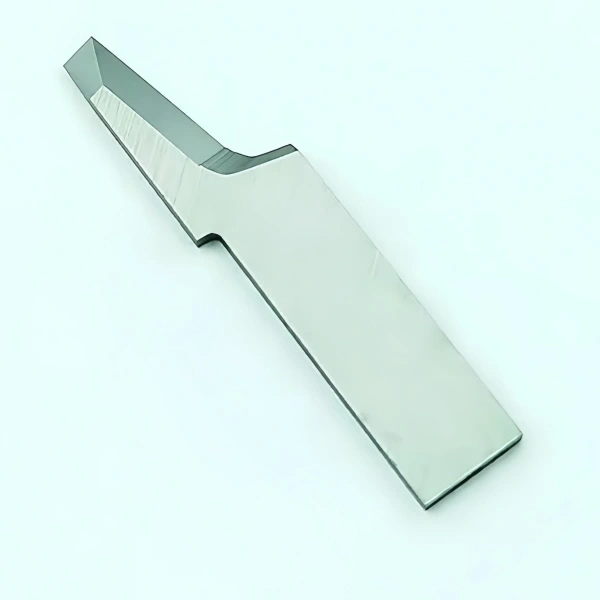

Atom 01039922 HV1600 Tungsten Carbide Oscillating Knife Blade
The Atom Flashcut 01039922 oscillating blade is compatible with the ATOM HV1600 automatic cutting machine. It supports cutting cardboard, leather, shoe materials, and paper with a 1mm thickness and 7mm cutting depth, providing an industrial high-efficiency cutting solution.
- Description
Atom Flashcut 01039922 Oscillating Blade | HV1600 Automatic Cutting Machine Blade | For Cardboard and Leather
Technical Specifications
| Parameter | Details |
|---|---|
| Compatible with | Atom |
| Model | 01039922 |
| Series | Flashcut HV1600 |
| Blade Type | Flat oscillating blade |
| Material | Tungsten carbide |
| Mounting | Flat 1 mm |
| Max Cutting Depth | 7 mm |
| Blade Height | 28 mm |
| Blade Width | 5.50 mm |
| Thickness | 1.00 mm |
| Angle | 10°–15° |
Product Overview
The Atom 01039922 Flashcut HV1600 oscillating knife blade is a high-performance cutting tool crafted specifically for use with Atom CNC digital cutting systems. Engineered with a 1 mm flat mounting and a refined cutting angle of 10°–15°, it delivers exceptional accuracy and seamless cutting on soft and thin materials.
This blade is a trusted choice in industries such as footwear manufacturing, leather processing, and paper cutting, where precision and clean, crisp edges are paramount.
Applications
This blade is ideal for cutting:
Leather
Footwear materials
Paper
Cardboard
Why Choose Our Blade
High precision cutting performance
Durable carbide material
Smooth cutting for delicate materials
Reliable OEM replacement
Factory direct supply
FAQ
Q1: What materials is this blade best for?
A: Leather, footwear materials, paper, and cardboard.
Q2: What is the advantage of 10°–15° angle?
A: It allows precise and smooth cutting for thin materials.
Q3: Is this compatible with Atom HV1600 machines?
A: Yes, it is specifically designed for Flashcut HV1600 systems.
Q4: Do you support bulk orders?
A: Yes, we offer wholesale pricing and OEM support.
