ATOM Blade Kimla 01040076F 80/55 typ HV1600 oscilation knife

ATOM Blade Kimla 01040076F 80/55 typ HV1600 oscilation knife

CUTTER BRAND
Atom, MLA

ANGLE
0°-5°

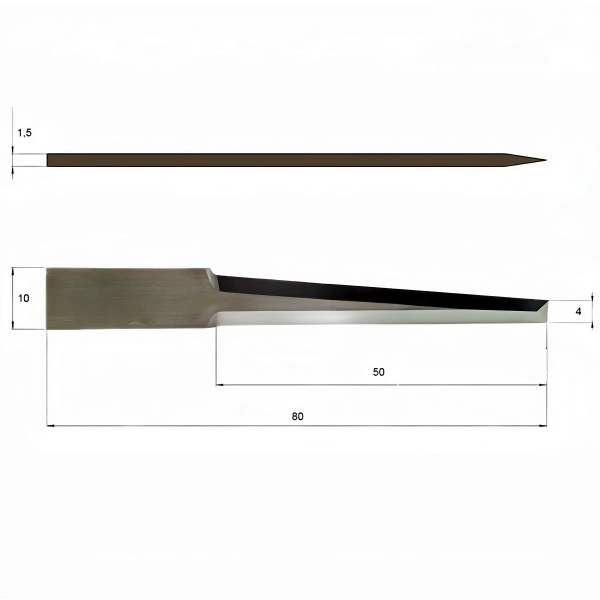

KNIFE HEIGHT
80,00 mm

KNIFE WIDTH
10,00 mm

THICKNESS
1,50 mm

MAX. CUTTING DEPTH
50,00 mm

MATERIALS
Foam board, Packaging materials, Synthetic materials

KNIFE TYPE
Flat, Oscillating blade

KNIFE/BLADE MOUNTING
flat 1,5 mm

Product Description

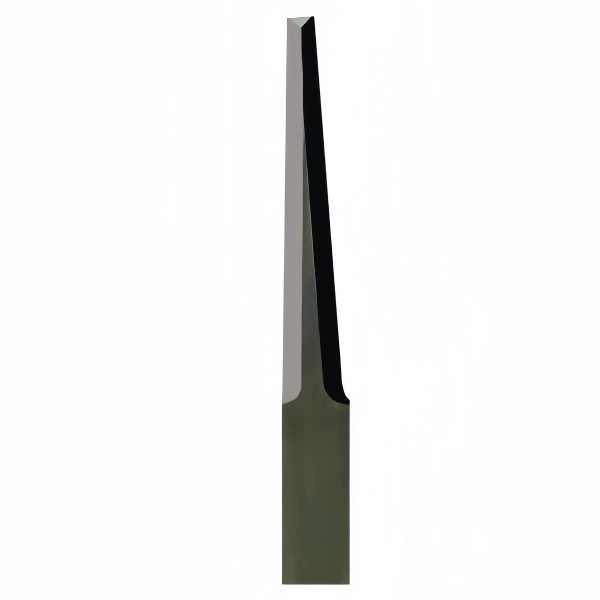

The Atom 01040076F oscillation knife blade is a high-performance flat oscillating CNC blade designed for machines using a 1.5 mm flat blade holder, including Ki, MLA, Polska Grupa CNC, and Seron cutting systems. With an oscillation-optimized 0°–5° cutting angle and a robust 1.50 mm thickness, this blade delivers precise, stable cutting performance in industrial packaging, display manufacturing, and foam-processing environments.

Its 80 mm blade height and 50 mm maximum cutting depth make it ideal for medium-to-thick materials such as foam board, packaging materials, EVA foam, PE foam, and synthetic sheet materials. The wider 10 mm blade body ensures greater stiffness and reduced vibration, improving accuracy during high-speed oscillation.

As a direct replacement blade for Atom 01040076F, it offers excellent durability, clean edge quality, and reliable compatibility with flat-mount oscillating knife tools.
