Atom Flashcut blade 01039901 Carbide Oscillating Knife

Atom 01047659 HV1600 Tungsten Carbide Oscillating Knife blade
Atom 01047687 Flashcut HV1600 Carbide Knife blade

Atom 01039901 Flashcut oscillating blade, HV1600, tungsten carbide, 30° blade angle, suitable for paper, cardboard, polyester fabric and other materials, maximum cutting depth 10mm, thickness 0.63mm, Atom replacement blade.

Category:

Atom 01039901 Flashcut HV1600 Carbide Knife blade Suitable for ATOM automatic cutting machine

Cutter brand
Atom

Angle
30°

Knife height
28,00 mm

Knife width
5,60 mm

Thickness
0,63 mm

Max. cutting depth
10,00 mm

Materials
Cardboard, Paper, Polyester fabric, Textiles

Knife Type
Flat, Oscillating blade

Replacement
Yes

Knife/blade mounting
flat 0,63 mm

Product Description:

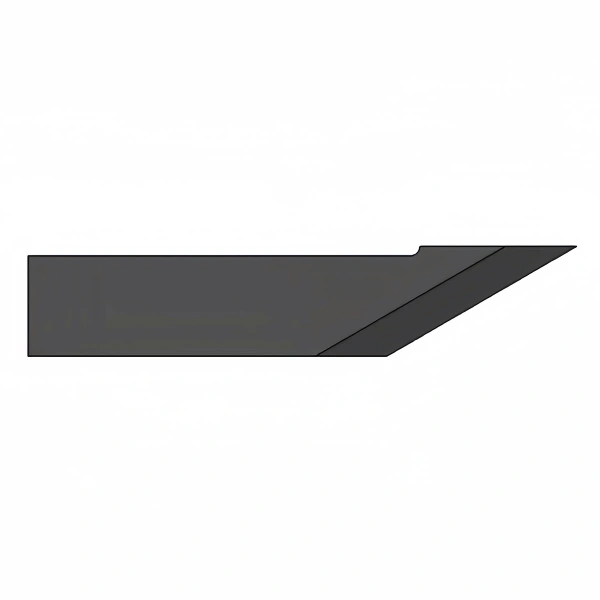

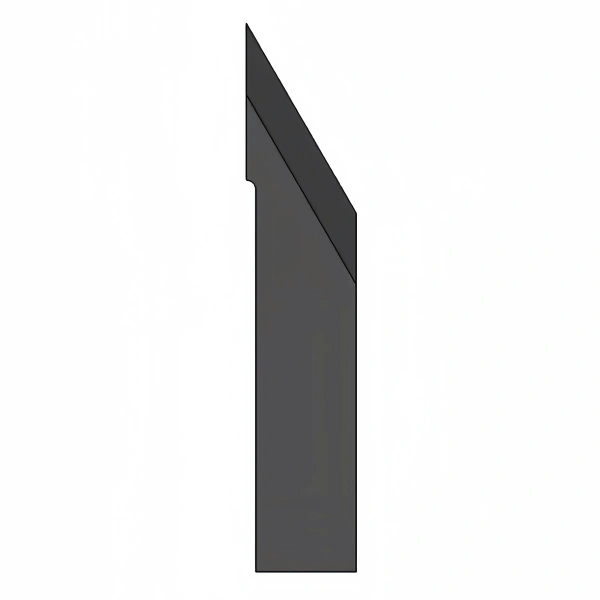

Atom 01039901 Oscillating Blade Made of high-hardness HV1600 grade tungsten carbide, it has excellent wear resistance and sharpness, and is designed for ATOM Flashcut automated cutting machines.
The blade has a 30° angle and is suitable for high-frequency vibration cutting of paper, cardboard, polyester fiber, cloth and other lightweight materials.
The blade size is 28mm high, 0.63mm thick, and a maximum cutting depth of 10mm. It can reduce material drawing or burrs while ensuring cutting efficiency, making it an ideal choice among replaceable flat oscillating blades.
