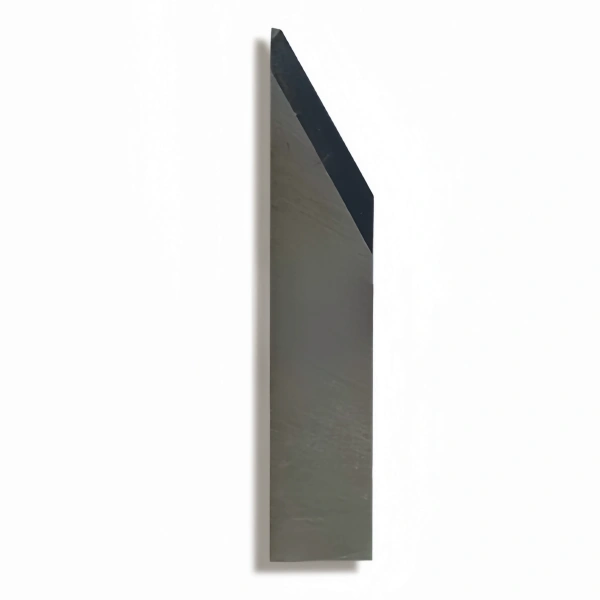

Atom 01039897 (01033372) HV1600 Oscillating knife blade

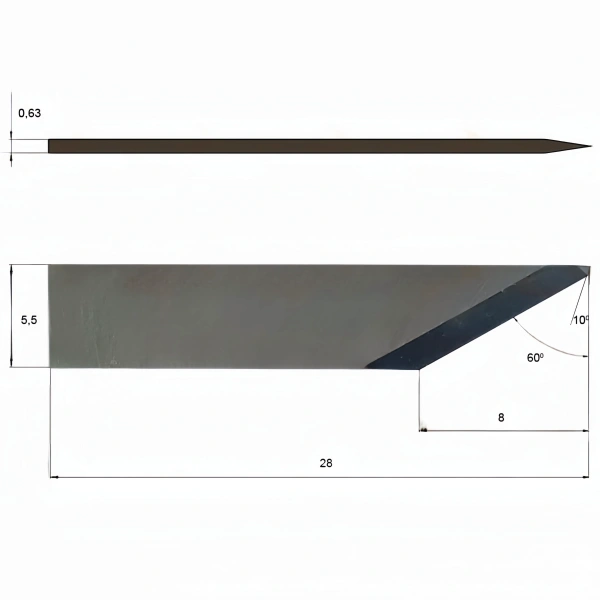

Atom 01039897 (01033372) HV1600 Oscillating Blade for ATOM cutting machines, suitable for cutting leather, polyester fabrics and textiles. Its unique 10°/60° cutting angle and 28mm blade height, combined with 5.50mm blade width, ensure excellent cutting results. The blade thickness is 0.63mm and the maximum cutting depth can reach 8mm, suitable for flat and oscillating cutting.
- Description
Atom 01039897 (01033372) Blades Kimla 28/10 typ HV1600 oscillating knife
CUTTER BRAND
Atom, mla
ANGLE
10°/60°
KNIFE HEIGHT
28,00 mm
KNIFE WIDTH
5,50 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
8,00 mm
MATERIALS
Leather, Polyester fabric, Textiles
KNIFE TYPE
Flat, Oscillating blade
KNIFE/BLADE MOUNTING
flat 0,63 mm
01039897 (HV1600)
01033372 (HV1400)
