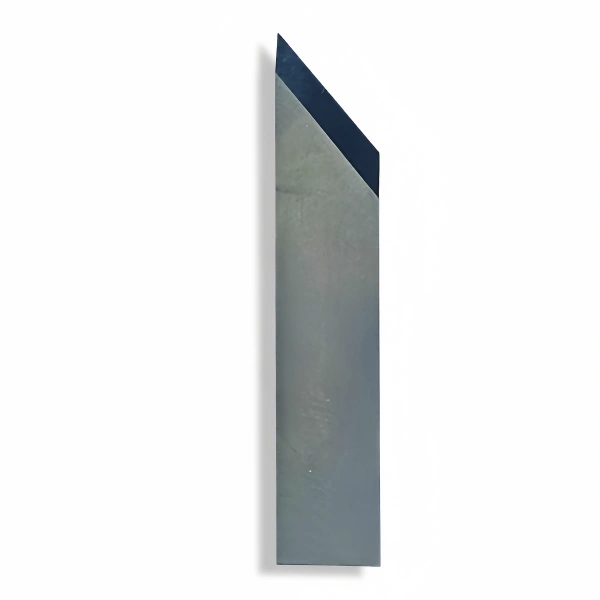

ATOM 01039892-01033304 Tungsten Carbide Oscillating knife Blade

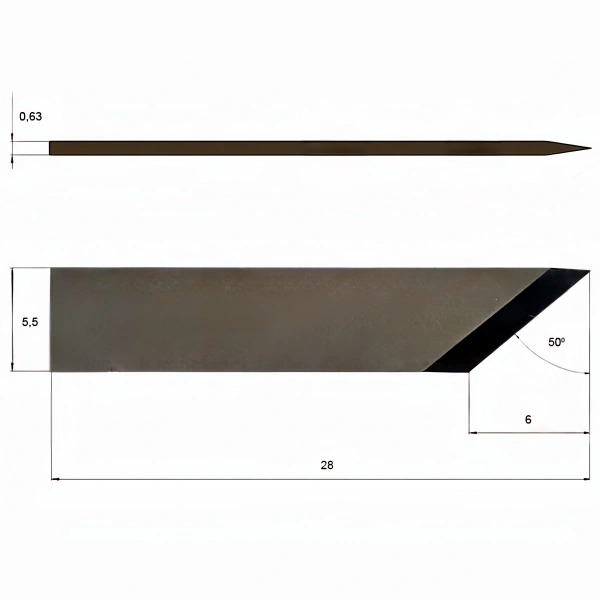

ATOM 01033304-01039892 HV1400 blade is a highly efficient flat oscillating knife designed for textile materials. The blade has a height of 28 mm, a width of 5.5 mm, a thickness of 0.63 mm, a cutting angle of 50°, and a maximum cutting depth of 6 mm. Its flat design ensures cutting accuracy and is suitable for a variety of textiles
- Description
ATOM Blade 01033304 HV1400 01039892 HV1600 oscillating knife
CUTTER BRAND
Atom, MLA
ANGLE
50°
KNIFE HEIGHT
28,00 mm
KNIFE WIDTH
5,50 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
6,00 mm
MATERIALS
Textiles
KNIFE TYPE
Flat, Oscillating blade
KNIFE/BLADE MOUNTING
flat 0,63 mm
