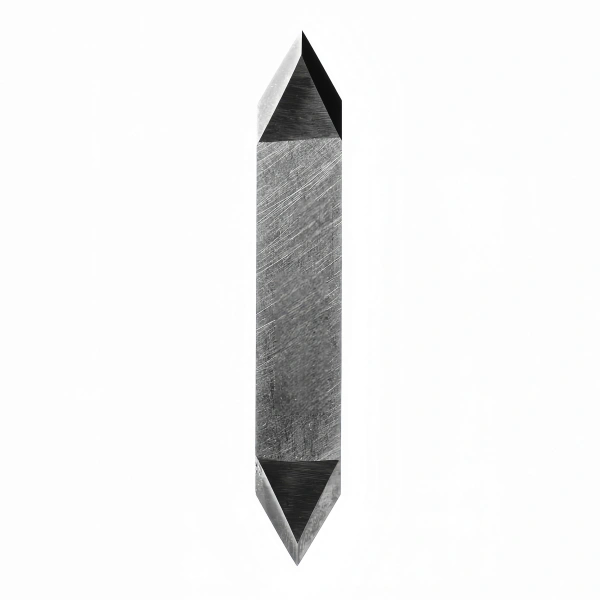

Atom 01033925 Flashcut with Double Wire Carbide Knife Blades
ATOM 01033925 double-wire tungsten carbide drag cutting blade, suitable for Flashcut automatic cutting machine, 60° angle, maximum cutting depth 6.9mm, suitable for precise cutting and creasing of materials such as PVC, canvas, sole materials, Tunit, hard foam, etc.
- Description
Atom 01033925 Flashcut with Double Wire Carbide Knife Blades，compatible knife for Atom automated cutting machine
Plotter brand
Atom
Blade angle
60°
Knife height
50.00 mm
Knife width
8.00 mm
Knife thickness
1.50 mm
Maximum cutting depth
6.90 mm
Knife type
For scoring, Drag knife, Flat
Materials
Tarpaulin, Foil, Magnetic foil, Self-adhesive foil, Shoe sole materials, Gasket materials, Paper, Tarpaulin, Plastic, Polycarbonate, PVC, Cardboard, Polyester fabrics, Tunit, Hard foams, Hard plastic
Substitute
Yes
Blade / knife attachment
flat 1.5 mm
Product Description：

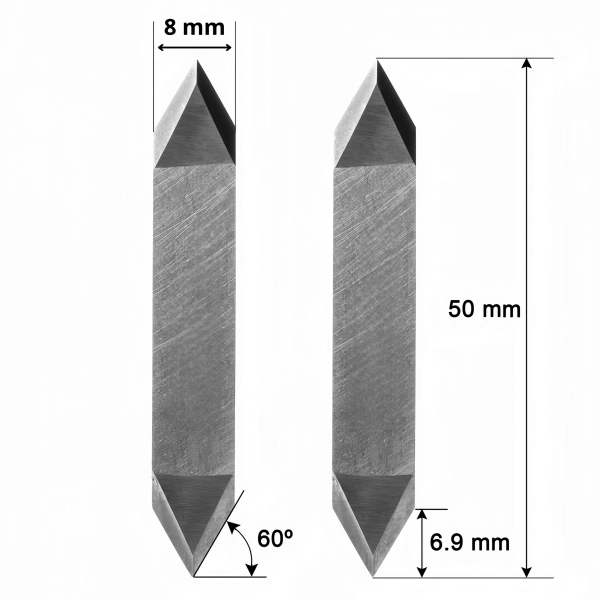

ATOM 01033925 double-wire tungsten carbide blade is suitable for Flashcut series automatic cutting system. It is a highly wear-resistant tool designed for indentation and drag cutting process. The blade adopts 60° cutting angle, dimensions are 50mm (height) × 8mm (width) × 1.5mm (thickness), flat handle structure (1.5mm), maximum cutting depth is 6.9mm, and compatible with a variety of automated CNC cutting equipment.
This blade is suitable for drag cutting and indentation marking, especially for processing canvas, PVC, self-adhesive film, sole material, gasket material, polycarbonate, hard plastic, cardboard, polyester cloth, magnetic film, Tunit, high-density foam and other industrial and packaging materials.
It is widely used in industries including: shoe material manufacturing, packaging printing, logo advertising, industrial sealing, automotive interior, soft and hard composite material cutting, electronic material processing, etc.
