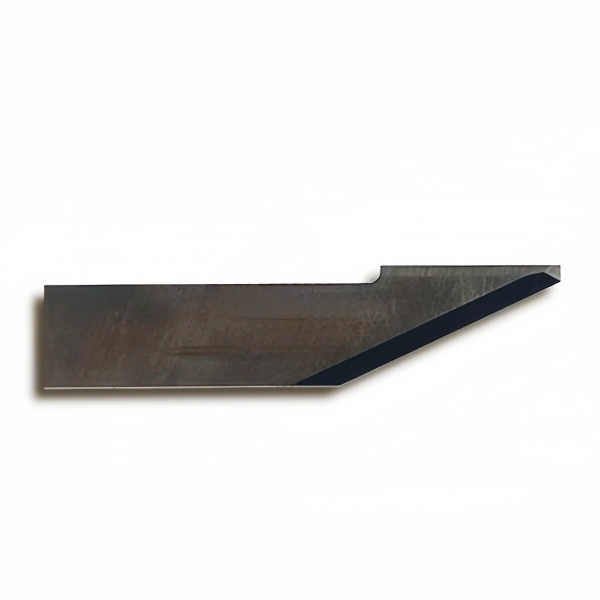

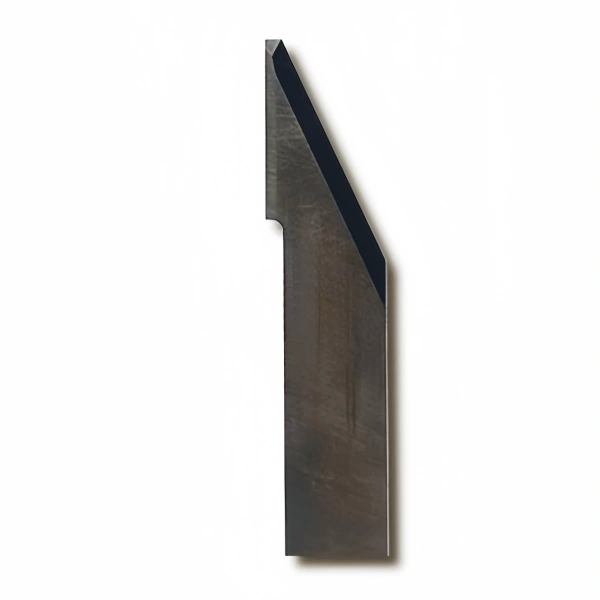

Atom 01033858 Tungsten Carbide Oscillating Knife Blades HV1600
Atom 01033858 oscillating blade, HV1600 compatible, 25°-0° blade angle, 28mm high, 0.63mm thick, suitable for precise cutting of leather, fiber, cardboard, foam, etc.
- Description
Atom 01033858 Oscillating Knife Blades HV1600 compatible for Atom automated cutting machine
CUTTER BRAND
Atom
ANGLE
25°-0°
KNIFE HEIGHT
28,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
14,00 mm
KNIFE TYPE
Flat, Oscillating blade, Pointed
MATERIALS
Aramid fibers, Carbon fibers, Corrugated cardboard, Felt, Foam board, Leather, Polyester fabric
KNIFE/BLADE MOUNTING
flat 0,63 mm
The Atom 01033858 oscillating blade is compatible with Atom automated cutting machines. Its straight-pointed blade, combined with a 25°-0° blade angle, delivers stable, sharp cuts on materials of varying hardness and thickness.
The blade’s 28mm height and 0.63mm thickness ensure both strength and cutting flexibility. With a maximum cutting depth of 14mm, it easily handles cutting multiple layers or thicker materials.
Whether processing industrial composites, automotive interiors, packaging proofing, or leather, textiles, and foam, this blade consistently delivers high efficiency and exceptional cutting precision.
Atom 01033858 Oscillating Blade, HV1600 Blade, Automatic Cutting Machine Tool, Straight Point Blade, Carbon Fiber Cutting Blade, Leather Cutting Blade, Foam Cutting Blade, Corrugated Cardboard Cutting Blade
