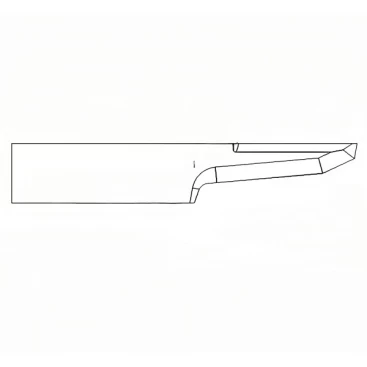

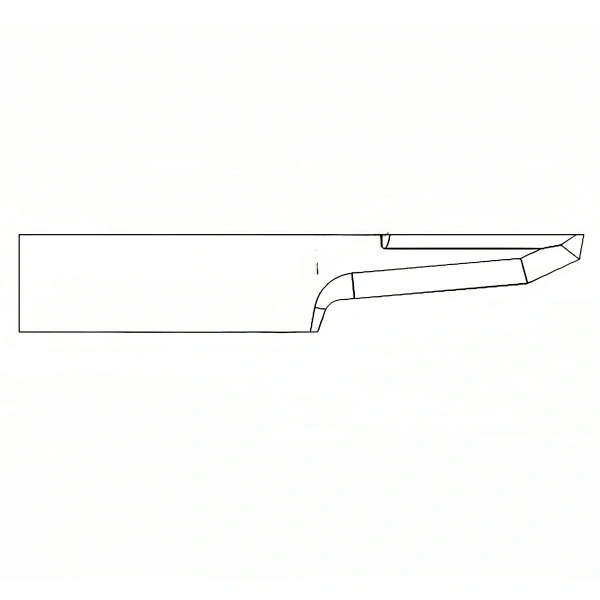

Atom 01033840 HV1400 Carbide Oscillating Knife Blades
ATOM 01033840 tungsten carbide vibrating blade, suitable for HV1400 system, suitable for soft leather cutting within 7mm, angle 5°-25°-10°, high precision, long life, suitable for footwear and leather processing industries.
- Description
Atom 01033840 Flashcut 5 ° – 25 ° – 10 ° HV1400 Carbide Oscillating Knife Blade
Cutting depth: 7 mm ,
Original No.01033840 (HV1400)
Angle: 5°-25°-10°,
Recommended Material: Soft leathers, thickness up to 7 mm, min. radius 3 mm.
ATOM 01033840 tungsten carbide vibrating blade is designed for ATOM Flashcut HV1400 series automatic cutting system. It adopts compound angle design (5°-25°-10°) and has sharp and smooth cutting. It is especially suitable for high-precision cutting applications of soft leather and other medium-soft materials. The maximum cutting depth is 7mm and the minimum cutting radius is only 3mm, which is suitable for complex contours and detailed graphics processing.
Made of highly wear-resistant tungsten carbide material, this blade has a longer service life and excellent cutting stability. It is widely used in leather goods manufacturing, footwear, luggage, furniture soft bags, automotive leather interior and flexible material processing industries. It is an ideal choice for precise and efficient leather cutting.
