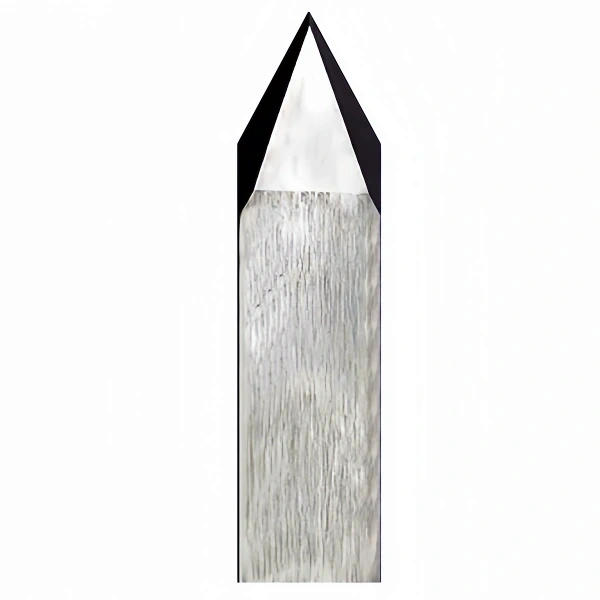

Aristo 910.309-S Tungsten Carbide double-side Knife blades
Aristo 910.309-S tungsten carbide double-edged drag cutter blade is suitable for corrugated cardboard, PVC, polypropylene and other materials. It has a highly wear-resistant double-sided blade and is compatible with the ARISTO digital cutting platform. It is suitable for the advertising and packaging industries.
- Description
Aristo 910.309-S Tungsten Carbide double-side Knife Blades
CUTTER BRAND
Aristo
ANGLE
60°
KNIFE HEIGHT
25,00 mm
KNIFE WIDTH
8,00 mm
THICKNESS
1,50 mm
MAX. CUTTING DEPTH
6,50 mm
KNIFE TYPE
Drag blade, Flat
MATERIALS
Cardboard, Corrugated cardboard, Folding Carton, Magnetic foil, Polypropylene, Polycarbonate, PVC, Vinyls
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
flat 1,5 mm
Product description:
Aristo 910.309-S double-edged tungsten carbide drag-cut blade is designed for digital cutting systems and industrial automation processing. It adopts a 60° cutting angle, a blade height of 25mm, a width of 8mm, a thickness of 1.5mm, and a maximum cutting depth of 6.5mm. The blade has a flat structure (1.5mm), a double-edged design, and can be flipped for use, which significantly extends the blade life and is suitable for efficient batch cutting.
Suitable for a variety of ARISTO automatic cutting platforms, widely used in packaging printing, advertising logos, electronic materials, flexible plastic sheets and display production industries. Especially suitable for cutting cardboard, corrugated cardboard, folding cartons, magnetic films, polypropylene (PP), polycarbonate (PC), PVC, advertising film (Vinyl) and other materials.
