Aristo 910.314 Tungsten Carbide Flat Single Edge Oscillating Knife blades
Single-edged precision blade with flat handle, suitable for digital cutting machines such as Zund, MultiCam, Kongsberg, etc. Low overcut design, excellent cutting effect on corrugated cardboard, foam board, rubber and other materials, suitable for fine processing scenarios.
- Description

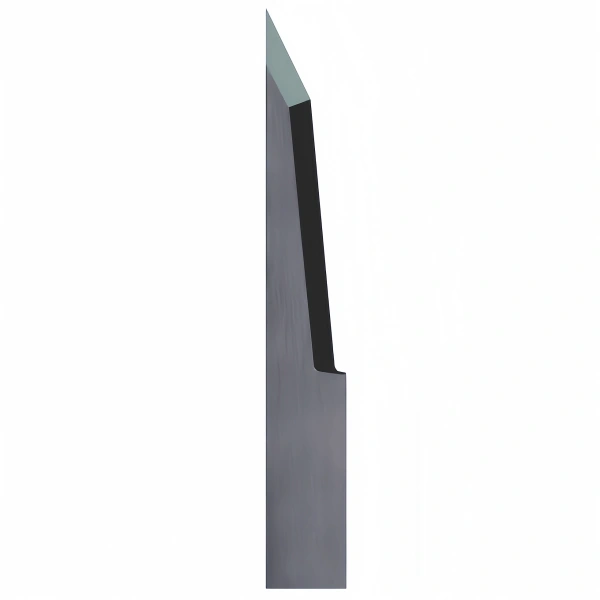

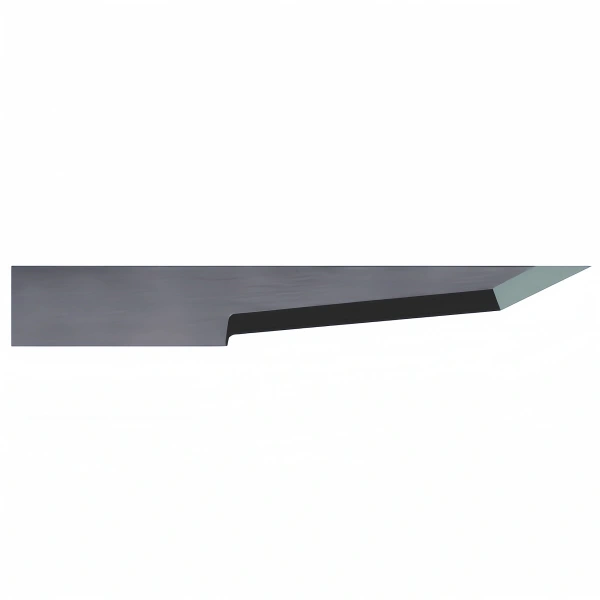

Aristo 910.314 Carbide Oscillating Knife Blades
Cut Length: 17.2mm
Shank: 4mm
Shank Style: FLAT
Thickness: 0.63mm
Overall Length: 28mm
Description: FLAT SINGLE EDGE BLADE
Notes: Fine blade with low overcut; designed to cut intricate detail
Materials: Corrugated, Foam Board, Folding Carton, Magnetic Foil, Rubber, etc.
Replaces:
Zund Z21
MultiCam K66
Kongsberg BLD-SF421
Colex T00421
Aristo 910.314
Summa 500-9812
Product Description：
This flat handle single-edged precision blade is made of tungsten carbide material, with a cutting length of 17.2mm, a thickness of 0.63mm, a total length of 28mm, a handle diameter of 4mm, and a flat handle structure, which is suitable for a variety of digital cutting systems. The blade is finely designed and has low overcut characteristics. It is suitable for cutting tasks with high precision and complex graphics, especially for processing corrugated cardboard, foam board, folding carton, magnetic film, rubber and other materials. It can perfectly replace Zund Z21, MultiCam K66, Kongsberg BLD-SF421, Colex T00421, Aristo 910.314 and Summa 500-9812 blades, and is widely used in packaging, advertising, logo, industrial manufacturing and other industries.
