Gerber Tangential Blades Guide: TL-051 vs TL-052 vs TL-055
Gerber TL Tangential Blades Guide: TL-051 vs TL-052 vs TL-055
When using a Gerber digital cutting machine, choosing the correct Gerber tangential blade is essential for achieving clean cuts, longer tool life, and stable production performance. Among the most widely used blades are Gerber TL-051, TL-052, and TL-055 tangential blades.
These tungsten carbide tangential cutting blades are designed for precision cutting of materials such as paper, leather, textiles, and industrial fabrics. In this guide, we compare TL-051 vs TL-052 vs TL-055 blades to help you choose the best blade for your application.
What Is a Gerber Tangential Blade?
A Gerber tangential knife blade is a type of cutting blade used in Gerber CNC cutting systems where the blade rotates and aligns with the cutting direction. Compared with standard oscillating blades, tangential blades provide higher precision and better control, especially when cutting complex shapes or thicker materials.
Because of their accuracy and durability, Gerber tangential cutter blades are widely used in industries such as:
Apparel and textile cutting
Leather processing
Packaging and paper products
Technical fabrics and composites
Gerber TL-051 Tangential Blade
The Gerber TL-051 blade is designed for precision cutting of thinner materials. With its 30° cutting angle, it delivers smooth and accurate cuts while minimizing material distortion.
Key specifications
Specification TL-051 Blade height 17.0 – 17.7 mm Thickness 0.5 – 1.0 mm Max cutting depth 3.5 mm Cutting angle 30° Material Tungsten carbide Mounting hole Ø 3 mm Typical applications
Paper and cardboard
Thin leather
Textile fabrics
Because of its smaller cutting depth, the TL-051 tangential blade is ideal for precision cutting on lightweight materials where edge quality is critical.

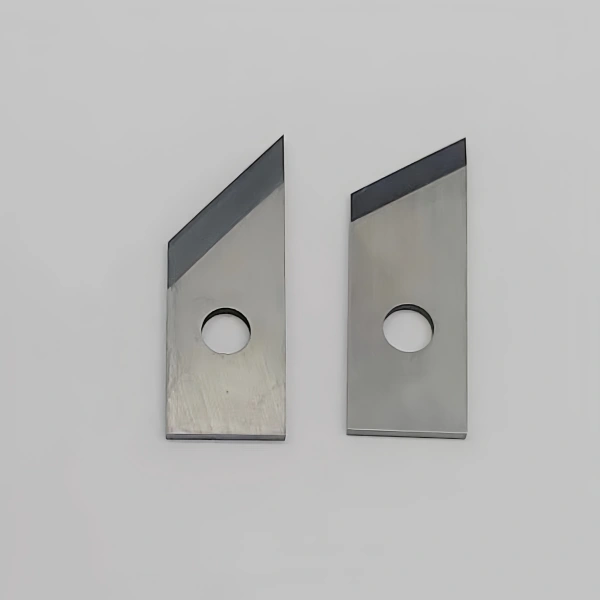

Gerber TL-052 Tangential Blade
The Gerber TL-052 blade is similar to the TL-051 but offers greater cutting depth, making it suitable for thicker materials.
Key specifications
Specification TL-052 Blade height 17.3 – 17.5 mm Thickness 0.5 – 1.0 mm Max cutting depth 6.0 mm Cutting angle 45° Material Tungsten carbide Mounting hole Ø 2.7 – 3 mm Typical applications
Leather cutting
Fabric and textile cutting
Paper and packaging materials
Because of its 45° blade angle, the TL-052 Gerber blade provides stronger cutting performance and is commonly used for medium-thickness materials.

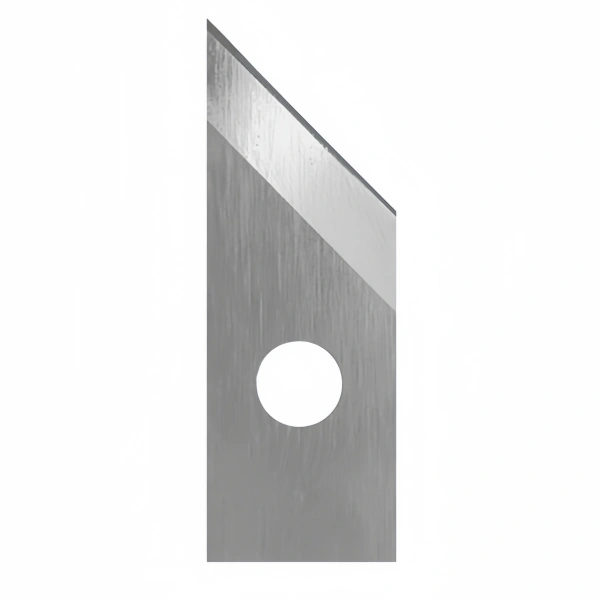

Gerber TL-055 Tangential Blade
The Gerber TL-055 tangential blade is made from solid tungsten carbide, offering excellent wear resistance and longer service life compared with standard blades.
Key specifications
Specification TL-055 Blade height 17.7 – 18.0 mm Thickness 0.5 mm Max cutting depth 6.0 mm Cutting angle 45° Material Solid tungsten carbide Mounting hole Ø 2.7 mm Typical applications
Leather and heavy fabrics
Industrial textiles
Paper and flexible materials
Because of its double bevel design and high hardness, the TL-055 carbide blade is often preferred for high-volume production environments.
TL-051 vs TL-052 vs TL-055: Key Differences
Feature TL-051 TL-052 TL-055 Cutting angle 30° 45° 45° Max cutting depth 3.5 mm 6.0 mm 6.0 mm Material Tungsten carbide Tungsten carbide Solid tungsten carbide Best for Thin materials Medium thickness materials Durable cutting & heavy use Quick selection tips
Choose TL-051 for thin materials and precision cutting
Choose TL-052 for deeper cuts and versatile applications
Choose TL-055 for longer tool life and heavy-duty cutting
Choosing the Right Gerber Tangential Blade Supplier
When purchasing Gerber TL tangential blades, it is important to choose blades made from high-quality tungsten carbide to ensure durability and cutting accuracy. High-quality Gerber cutter replacement blades can significantly reduce machine downtime and improve production efficiency.
Reliable blade suppliers typically offer:
Precision-ground tungsten carbide cutting edges
Consistent blade dimensions for Gerber cutting machines
Long service life and stable cutting performance
Competitive pricing for Gerber blade replacements
Conclusion
The Gerber TL-051, TL-052, and TL-055 tangential blades are essential tools for achieving high-quality cutting results on Gerber digital cutting systems. Understanding the differences between these Gerber cutter blades will help you choose the most suitable option for your material and production needs.
Whether you are cutting paper, leather, textiles, or industrial fabrics, selecting the correct Gerber tangential blade ensures cleaner edges, higher productivity, and longer tool life.
